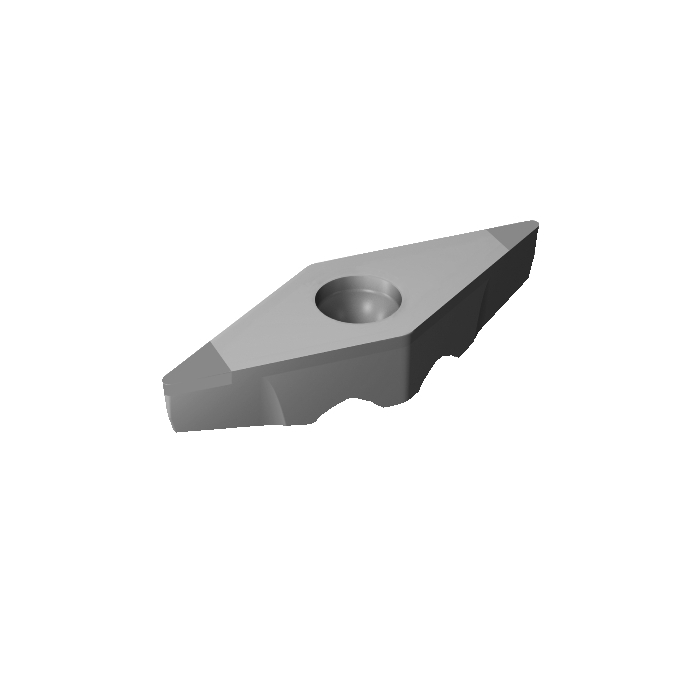

Sandvik Coromant TR-VB1308S01020F 7025 CoroTurn™ TR insert for turning
R 1 251,20
inc. vat
In stock
SKU
5983712
CoroTurn® TR insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® TR insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.005kg |
| AN - Clearance Angle Major | 5deg |
| IC - Inscribed Circle Diameter | 8mm |
| RE - Corner Radius | 0.7938mm |
| Insert Thickness | 4.525mm |
| D1 - Fixing Hole Diameter | 3.4mm |
| LE - Cutting Edge Effective Length | 3.1mm |
| L - Cutting Edge Length | 13mm |
| BN - Face Land Width | 0.1mm |
| GB - Face Land Angle | 20deg |
| ORDCODE | TR-VB1308S01020F 7025 |
| CHANGEDATE | 2021-12-17 20:37:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 8 |
| SC - Insert Shape Code | V |
| SSC - Insert Seat Size Code | 13 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_TH13_1 |
| Grade | 7025 |
| SUBSTRATE | BL |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | False |
