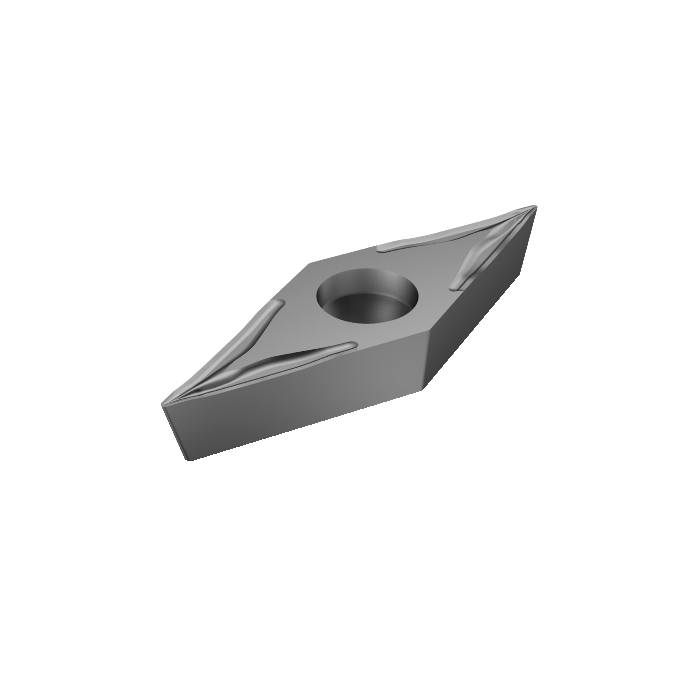

Sandvik Coromant VBGT 16 04 02-UM H13A CoroTurn™ 107 insert for turning
R 354,20
inc. vat
In stock
SKU
5755587
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 9g |
| AN - Clearance Angle Major | 5deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 0.2mm |
| Insert Thickness | 4.7625mm |
| D1 - Fixing Hole Diameter | 4.4mm |
| LE - Cutting Edge Effective Length | 16.4063mm |
| L - Cutting Edge Length | 16.6063mm |
| ORDCODE | VBGT 16 04 02-UM H13A |
| CHANGEDATE | 2021-12-21 10:29:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | V |
| SSC - Insert Seat Size Code | 16 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_VB1604_1 |
| Grade | H13A |
| SUBSTRATE | HW |
| CBMD - Chip Breaker Manufacturer's Designation | UM |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | False |
