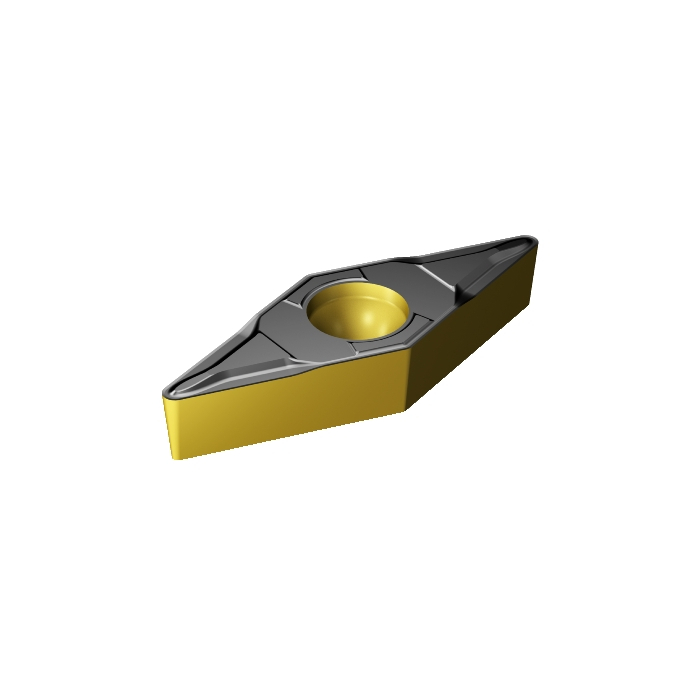

Sandvik Coromant VBMT 16 04 04-KM 3225 CoroTurn™ 107 insert for turning
Next
Sandvik Coromant VBMT 11 03 08-KF 3225 CoroTurn™ 107 insert for turning
Previous
![Sandvik Coromant VBMT 16 04 04-KM 3225 CoroTurn™ 107 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/60499261e/sandvik-coromant-vbmt-16-04-04-km-3225-coroturntm-107-insert-for-turning.jpg)
![Sandvik Coromant VBMT 11 03 08-KF 3225 CoroTurn™ 107 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/604970625/sandvik-coromant-vbmt-11-03-08-kf-3225-coroturntm-107-insert-for-turning.jpg)
R 303,60
inc. vat
In stock
SKU
6868313
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 9.3g |
AN - Clearance Angle Major | 5deg |
IC - Inscribed Circle Diameter | 9.525mm |
RE - Corner Radius | 0.3969mm |
Insert Thickness | 4.7625mm |
D1 - Fixing Hole Diameter | 4.4mm |
LE - Cutting Edge Effective Length | 16.2063mm |
L - Cutting Edge Length | 16.6063mm |
ORDCODE | VBMT 16 04 04-KF 3225 |
CHANGEDATE | 2022-09-23 20:16:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | V |
SSC - Insert Seat Size Code | 16 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_VB1604_1 |
Grade | 3225 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | KF |
CEDC - Cutting Edge Count | 2 |
WEP - Wiper Edge Property | False |
