Sandvik Coromant VNMG 16 04 04-PMC 4325 T-Max™ P insert for turning
Next
Sandvik Coromant VBMT 16 04 08-PMC 4325 CoroTurn™ 107 insert for turning
Previous
![Sandvik Coromant VNMG 16 04 04-PMC 4325 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/55872d558/sandvik-coromant-vnmg-16-04-04-pmc-4325-t-maxtm-p-insert-for-turning.jpg)
![Sandvik Coromant VBMT 16 04 08-PMC 4325 CoroTurn™ 107 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/558709911/sandvik-coromant-vbmt-16-04-08-pmc-4325-coroturntm-107-insert-for-turning.jpg)
R 318,55
inc. vat
In stock
SKU
6198244

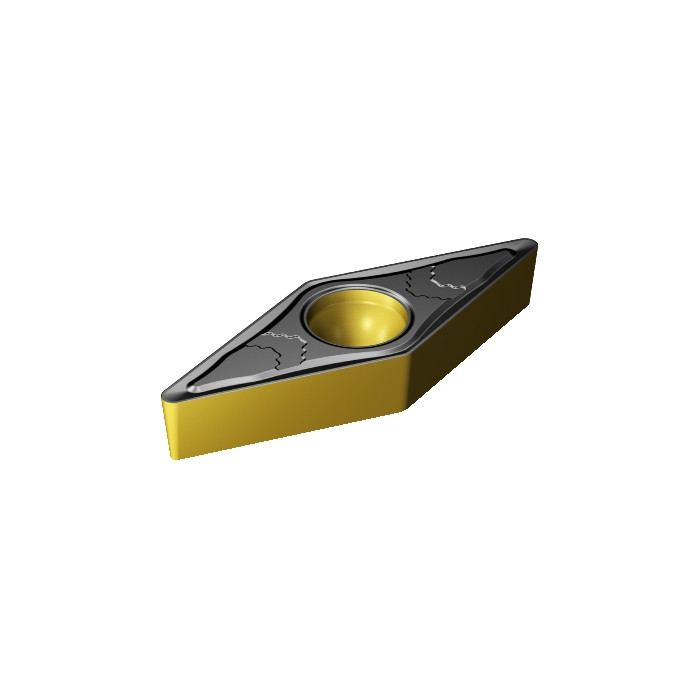

CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 8g |
AN - Clearance Angle Major | 5deg |
IC - Inscribed Circle Diameter | 9.525mm |
RE - Corner Radius | 1.1906mm |
Insert Thickness | 4.7625mm |
D1 - Fixing Hole Diameter | 4.4mm |
LE - Cutting Edge Effective Length | 15.4063mm |
L - Cutting Edge Length | 16.6063mm |
ORDCODE | VBMT 16 04 12-PMC 4325 |
CHANGEDATE | 2022-01-01 01:21:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | V |
SSC - Insert Seat Size Code | 16 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_VB1604_1 |
Grade | 4325 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | PMC |
CEDC - Cutting Edge Count | 2 |
WEP - Wiper Edge Property | False |
