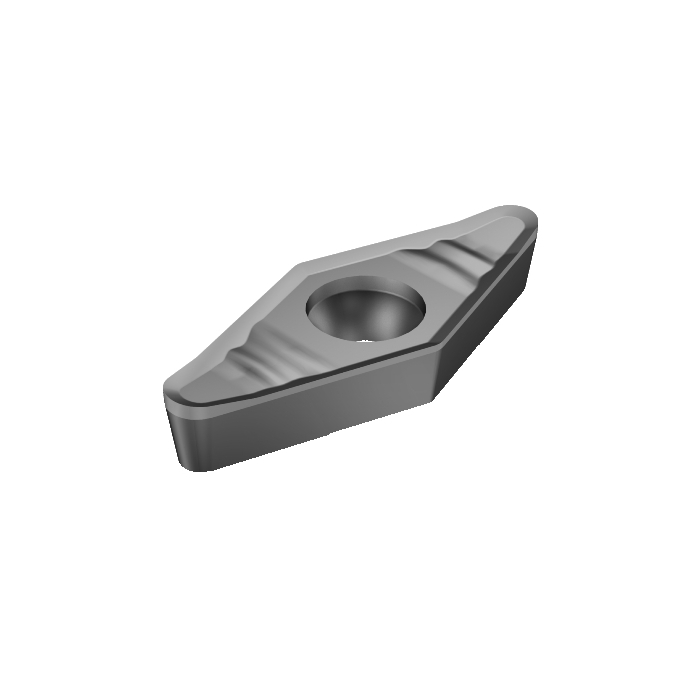

Sandvik Coromant VCGX 22 05 30-AL H10 CoroTurn™ 107 insert for turning
R 425,50
inc. vat
Out of stock
SKU
5755879
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.019kg |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 12.7mm |
| RE - Corner Radius | 3mm |
| Insert Thickness | 5.55625mm |
| D1 - Fixing Hole Diameter | 5.5mm |
| LE - Cutting Edge Effective Length | 19.1418mm |
| L - Cutting Edge Length | 22.1418mm |
| ORDCODE | VCGX 22 05 30-AL H10 |
| CHANGEDATE | 2021-12-17 19:51:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | V |
| SSC - Insert Seat Size Code | 22 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_VC2205_1 |
| Grade | H10 |
| SUBSTRATE | HF |
| CBMD - Chip Breaker Manufacturer's Designation | AL |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | False |
