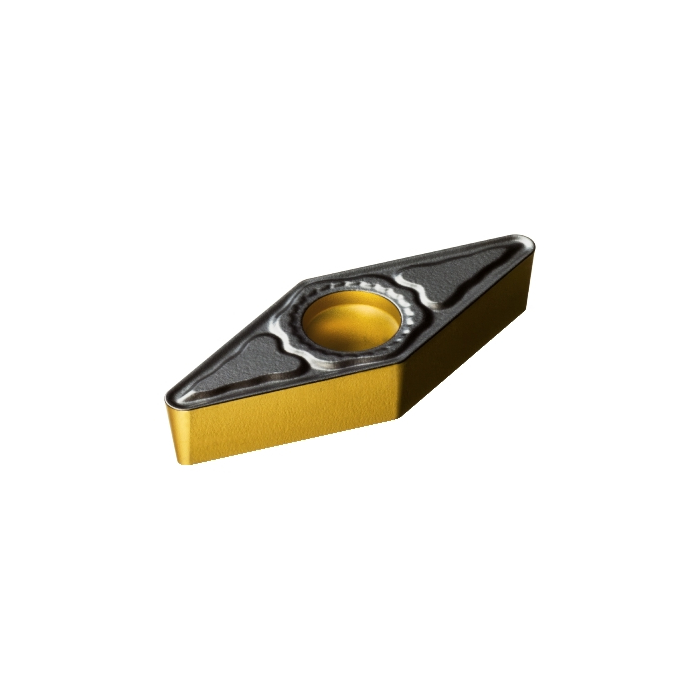

Sandvik Coromant VCMT 11 03 08-PM 1515 CoroTurn™ 107 insert for turning

R 287,50 inc. vat
In stock
SKU
5756014
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 2.4g
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 6.35mm
RE - Corner Radius 0.7938mm
Insert Thickness 3.175mm
D1 - Fixing Hole Diameter 2.8mm
LE - Cutting Edge Effective Length 10.2709mm
L - Cutting Edge Length 11.0709mm
ORDCODE VCMT 11 03 08-PM 1515
CHANGEDATE 2021-12-17 19:52:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code V
SSC - Insert Seat Size Code 11
CUTINT_SIZESHAPE - Insert Size And Shape MISO_VC1103_1
Grade 1515
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation PM
CEDC - Cutting Edge Count 2
WEP - Wiper Edge Property False
