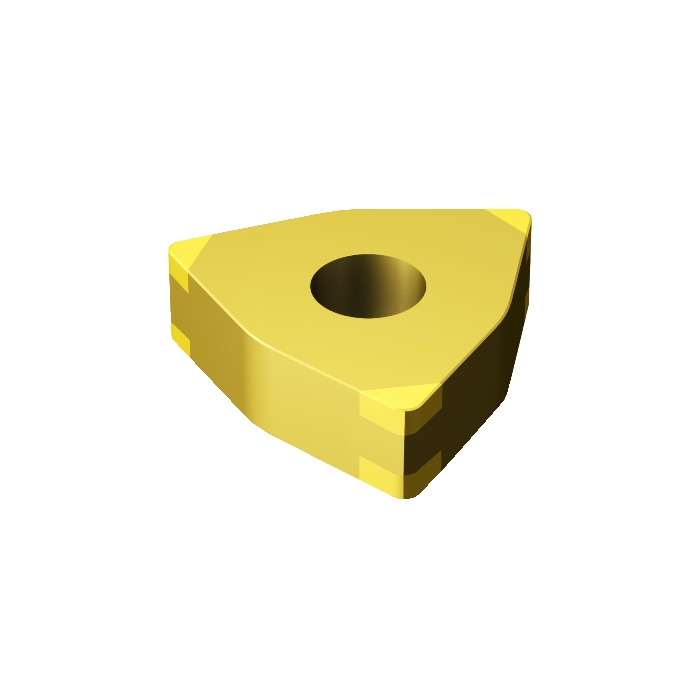

Sandvik Coromant WNGA080408S01525H 7115 T-Max™ P insert for turning
Next
Sandvik Coromant WNGA080404S01525H 7115 T-Max™ P insert for turning
Previous
![Sandvik Coromant WNGA080408S01525H 7115 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/619567f94/sandvik-coromant-wnga080408s01525h-7115-t-maxtm-p-insert-for-turning.jpg)
![Sandvik Coromant WNGA080404S01525H 7115 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/619548596/sandvik-coromant-wnga080404s01525h-7115-t-maxtm-p-insert-for-turning.jpg)
R 3 371,80
inc. vat
In stock
SKU
7190849
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.01kg |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 0.8mm |
Insert Thickness | 4.7625mm |
D1 - Fixing Hole Diameter | 5.156mm |
LE - Cutting Edge Effective Length | 2.5mm |
L - Cutting Edge Length | 8.6873mm |
KRINS - Major Cutting Edge Angle | 95deg |
BN - Face Land Width | 0.15mm |
GB - Face Land Angle | 20deg |
BS - Wiper Edge Length | 0.55mm |
ORDCODE | WNGA080408S01520HWH 7115 |
CHANGEDATE | 2022-09-22 11:51:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 2 |
SC - Insert Shape Code | W |
SSC - Insert Seat Size Code | 08 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_WN0804_1 |
Grade | 7115 |
COATING | PVD TiN |
SUBSTRATE | BC |
CBMD - Chip Breaker Manufacturer's Designation | WH |
CEDC - Cutting Edge Count | 6 |
WEP - Wiper Edge Property | True |
