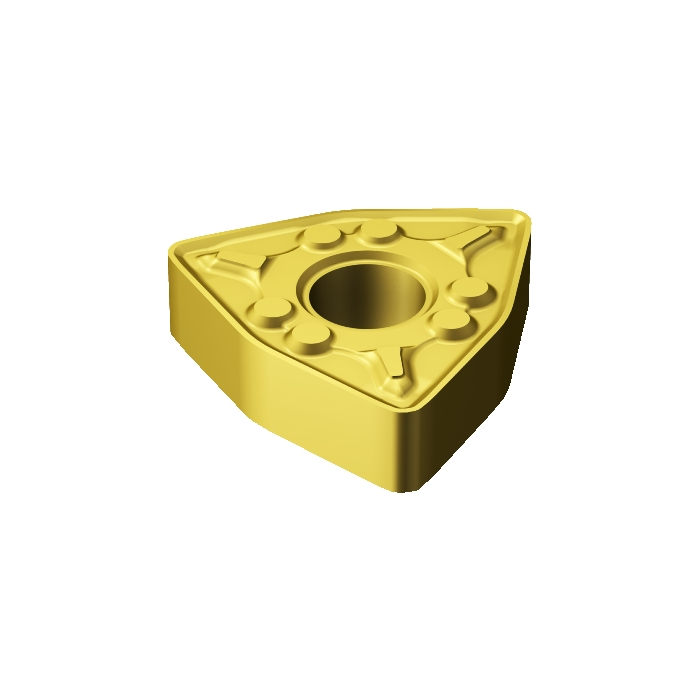

Sandvik Coromant WNMG 06 04 08-WM 3005 T-Max™ P insert for turning

R 213,90 inc. vat
In stock
SKU
5756604
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 5.2g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.7938mm
Insert Thickness 4.7625mm
D1 - Fixing Hole Diameter 3.81mm
LE - Cutting Edge Effective Length 5.7155mm
L - Cutting Edge Length 6.5155mm
KRINS - Major Cutting Edge Angle 95deg
BS - Wiper Edge Length 0.8mm
ORDCODE WNMG 06 04 08-WM 3005
CHANGEDATE 2021-12-17 19:58:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code W
SSC - Insert Seat Size Code 06
CUTINT_SIZESHAPE - Insert Size And Shape MISO_WN0604_1
Grade 3005
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation WM
CEDC - Cutting Edge Count 6
WEP - Wiper Edge Property True
