Sandvik Coromant WNMG 08 04 04-QM 235 T-Max™ P insert for turning Previous Sandvik Coromant WNMG 08 04 04-QM 235 T-Max™ P insert for turning

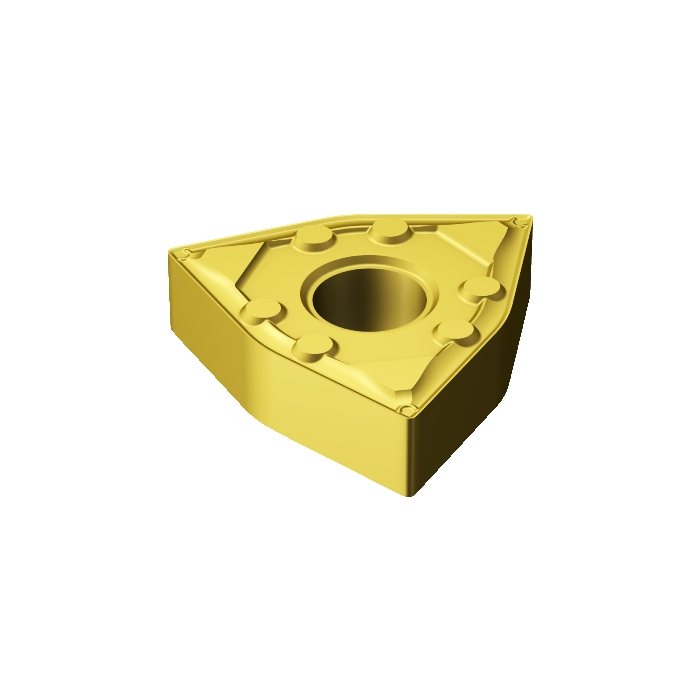

Sandvik Coromant WNMG 08 04 04-WF 1025 T-Max™ P insert for turning

R 282,90 inc. vat
Out of stock
SKU
5756651
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 0.01kg
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 0.3969mm
Insert Thickness 4.7625mm
D1 - Fixing Hole Diameter 5.156mm
LE - Cutting Edge Effective Length 8.2873mm
L - Cutting Edge Length 8.6873mm
KRINS - Major Cutting Edge Angle 95deg
BS - Wiper Edge Length 0.45mm
ORDCODE WNMG 08 04 04-WF 1025
CHANGEDATE 2021-12-21 08:09:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code W
SSC - Insert Seat Size Code 08
CUTINT_SIZESHAPE - Insert Size And Shape MISO_WN0804_1
Grade 1025
COATING PVD TiAlN+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation WF
CEDC - Cutting Edge Count 6
WEP - Wiper Edge Property True
