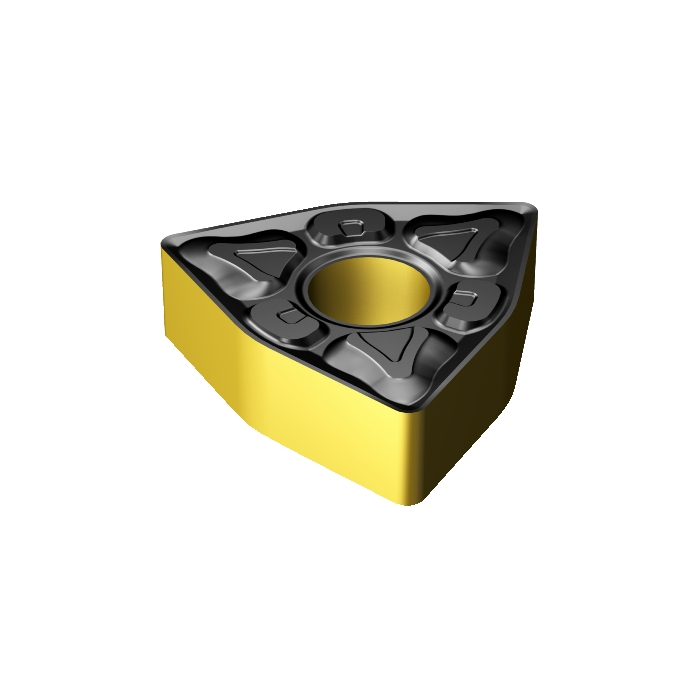

Sandvik Coromant WNMG 08 04 12-XM 4325 T-Max™ P insert for turning
Next
Sandvik Coromant WNMG 08 04 08-XF 4325 T-Max™ P insert for turning
Previous
![Sandvik Coromant WNMG 08 04 12-XM 4325 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/60306ce11/sandvik-coromant-wnmg-08-04-12-xm-4325-t-maxtm-p-insert-for-turning.jpg)
![Sandvik Coromant WNMG 08 04 08-XF 4325 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/603048725/sandvik-coromant-wnmg-08-04-08-xf-4325-t-maxtm-p-insert-for-turning.jpg)
R 269,10
inc. vat
In stock
SKU
6863515
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 10g |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 0.7938mm |
Insert Thickness | 4.7625mm |
D1 - Fixing Hole Diameter | 5.156mm |
LE - Cutting Edge Effective Length | 7.8873mm |
L - Cutting Edge Length | 8.6873mm |
ORDCODE | WNMG 08 04 08-XM 4325 |
CHANGEDATE | 2022-09-22 11:49:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 2 |
SC - Insert Shape Code | W |
SSC - Insert Seat Size Code | 08 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_WN0804_1 |
Grade | 4325 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | XM |
CEDC - Cutting Edge Count | 6 |
WEP - Wiper Edge Property | False |
