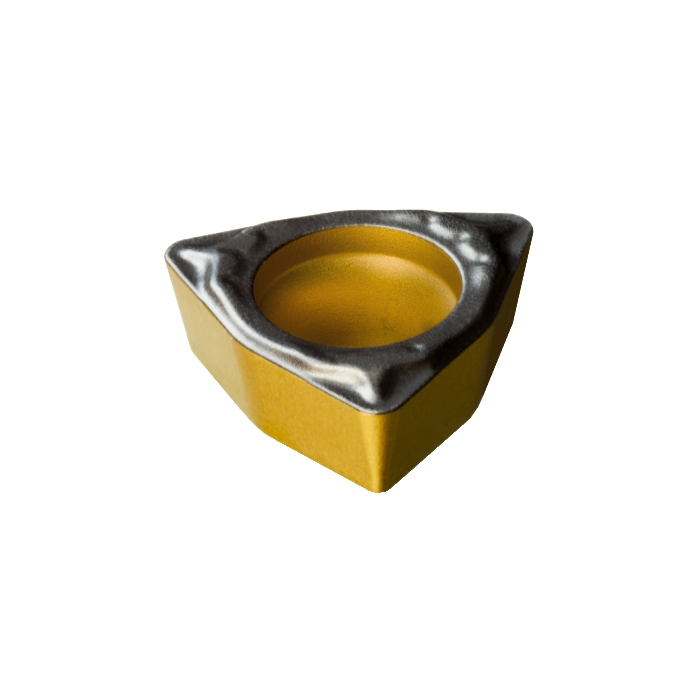

Sandvik Coromant WPMT 04 02 02-PF 1515 CoroTurn™ 111 insert for turning
R 210,45
inc. vat
In stock
SKU
5757183
CoroTurn® 111 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 111 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1g |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 6.35mm |
| RE - Corner Radius | 0.2mm |
| Insert Thickness | 2.38125mm |
| D1 - Fixing Hole Diameter | 2.8mm |
| LE - Cutting Edge Effective Length | 4.1437mm |
| L - Cutting Edge Length | 4.3437mm |
| ORDCODE | WPMT 04 02 02-PF 1515 |
| CHANGEDATE | 2021-12-17 20:02:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | W |
| SSC - Insert Seat Size Code | 04 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_WP0402_1 |
| Grade | 1515 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | PF |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | False |
