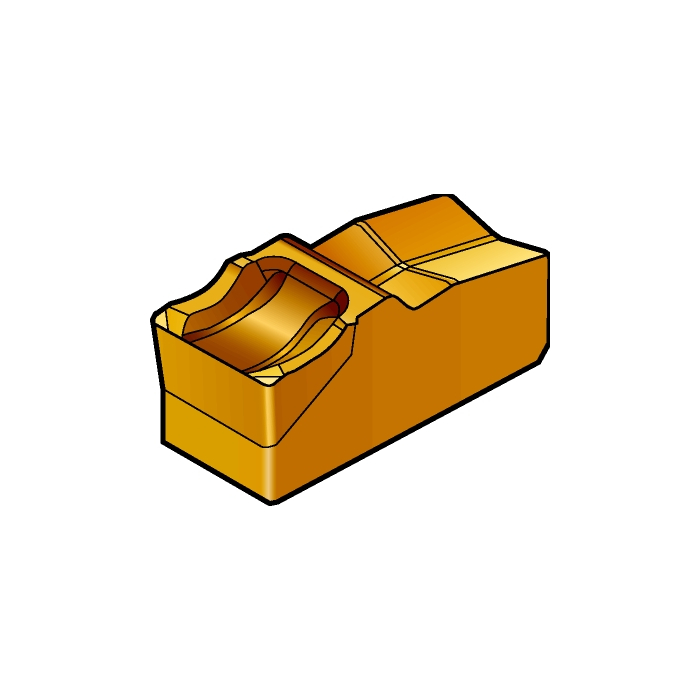

Sandvik Coromant 151.2-27-30-8 T-Max™ Q-Cut blade for parting
R 2 720,90
inc. vat
In stock
SKU
5757390
T-Max® Q-Cut blade for parting
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® Q-Cut blade for parting
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 59.5122mm |
| WT - Weight Of Item | 0.58kg |
| OAL - Overall Length | 59.5122mm |
| OHX - Maximum Overhang | 25.4mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 2.675mm |
| HF - Functional Height | 27mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 6.787mm |
| H - Shank Height | 44.75mm |
| CW - Cutting Width | 3mm |
| CDX - Cutting Depth Maximum | 25.4mm |
| ORDCODE | 151.2-27-30-8 |
| ADINTMS - Adaptive Interface Machine Direction | M_PMC013_C0270_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-21 05:39:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CB2G30_1 |
| Hand | N |
| MIID - Master Insert Identification | N151.2-300- 5E |
| SSC - Insert Seat Size Code | 30 |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
