Sandvik Coromant 151.2-27-30-8 T-Max™ Q-Cut blade for parting
Next
Sandvik Coromant 151.2-27-20-8 T-Max™ Q-Cut blade for parting
Previous
R 2 720,90
inc. vat
Out of stock
SKU
5757387

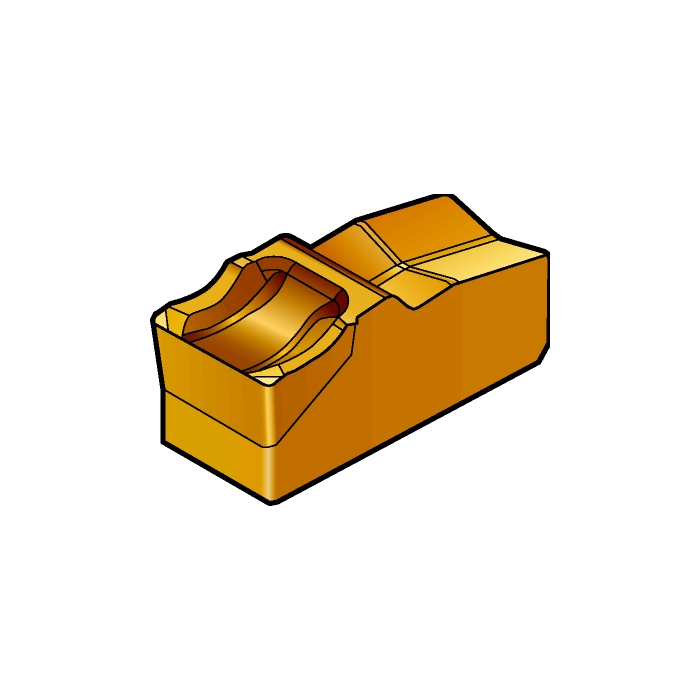

T-Max® Q-Cut blade for parting
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® Q-Cut blade for parting
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 59.5122mm |
WT - Weight Of Item | 0.02kg |
OAL - Overall Length | 59.5122mm |
OHX - Maximum Overhang | 25.4mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 2.25mm |
HF - Functional Height | 27mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 6.787mm |
H - Shank Height | 44.75mm |
CW - Cutting Width | 2.5mm |
CDX - Cutting Depth Maximum | 25.4mm |
ORDCODE | 151.2-27-25-8 |
ADINTMS - Adaptive Interface Machine Direction | M_PMC013_C0270_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-08-27 19:13:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CB2G25_1 |
Hand | N |
MIID - Master Insert Identification | N151.2-250- 5E |
SSC - Insert Seat Size Code | 25 |
CICT - Cutting Item Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
