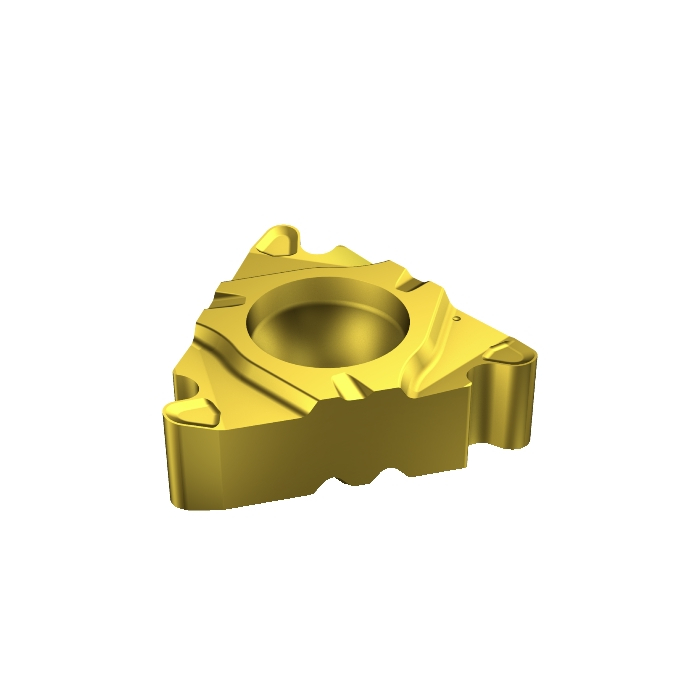

Sandvik Coromant 266LG-22RN01A040M 1020 CoroThread™ 266 insert for thread turning
R 710,70
inc. vat
Out of stock
SKU
5757645
CoroThread® 266 insert for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroThread® 266 insert for thread turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.012kg |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 12.7mm |
| Insert Thickness | 5.5626mm |
| D1 - Fixing Hole Diameter | 5.7mm |
| HA - Theoretical Thread Height | 7.45mm |
| HB - Thread Height Difference | 4.3mm |
| TPI - Threads Per Inch | 4 |
| PDX - Profile Distance Ex | 2.6mm |
| PDY - Profile Distance Ey | 1.377mm |
| ORDCODE | 266LG-22RN01A040M 1020 |
| CHANGEDATE | 2022-06-23 11:35:00.000 |
| STDNO - Standard Number | DIN 405 |
| Hand | L |
| IFS - Insert Mounting Style Code | 8 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 22 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_TCE22L_1 |
| Grade | 1020 |
| COATING | PVD TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | A |
| THFT - Thread Form Type | RN30 |
| TPT - Thread Profile Type | F |
| TTP - Thread Type | EXT |
| TCTR - Thread Tolerance Class | IT 7-6 |
| CEDC - Cutting Edge Count | 3 |
| NT - Tooth Count | 1 |
