Sandvik Coromant 266RKF-D16-3 CoroThread™ 266 boring bar for thread turning

Name: Sandvik Coromant 266RKF-D16-3 CoroThread™ 266 boring bar for thread turning
SKU: 5758091
Price: 4090.55 ZAR
Availability: InStock

Be the first to review this product

R 4 090,55 inc. vat

In stock

SKU

5758091

CoroThread® 266 boring bar for thread turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroThread® 266 boring bar for thread turning

More Information

More Information
CP - Coolant Pressure	4000000Pa
DCON - Connection Diameter	25.4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	304.8mm
BD - Body Diameter	25.4mm
TQ - Torque	3Nm
WT - Weight Of Item	0.989kg
OAL - Overall Length	304.8mm
OHX - Maximum Overhang	76.2mm
LSC - Clamping Length	228.6mm
DMIN - Minimum Bore Diameter	32.004mm
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	28.956mm
WF - Functional Width	16.9926mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	-15deg
LAMS - Inclination Angle	-1deg
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	9.525mm
Insert Thickness	3.96875mm
H - Shank Height	23.0124mm
LU - Usable Length	76.2mm
ALP - Axial Clearance Angle	-15deg
THCA - Thread Helix Correction Angle	1deg
ORDCODE	266RKF-D16-3
ADINTMS - Adaptive Interface Machine Direction	M_CYLF3_S1000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 15:59:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_TCI16L_2
Hand	R

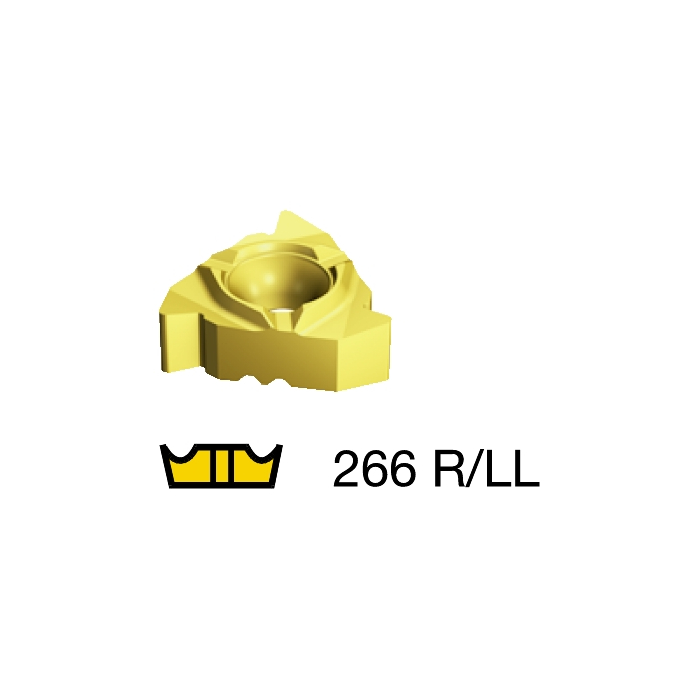

MIID - Master Insert Identification	266.RL-16..
IFS - Insert Mounting Style Code	8
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	16
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
