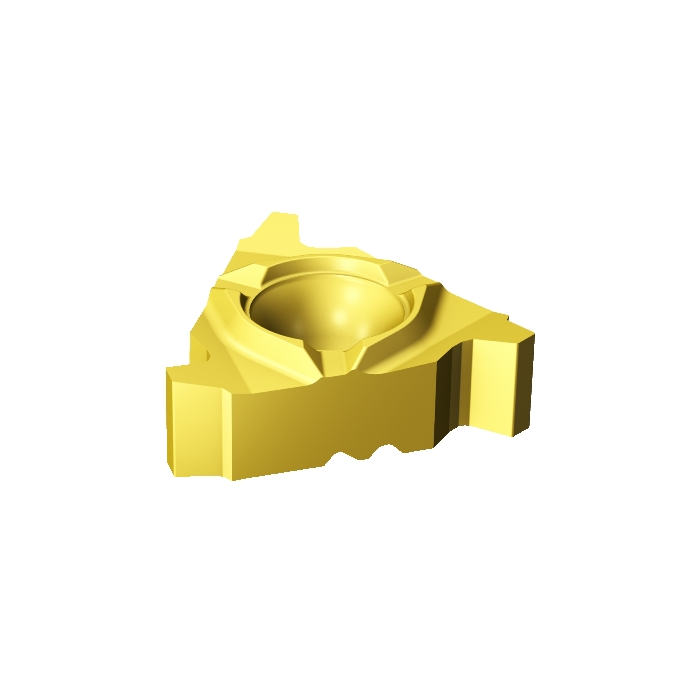

Sandvik Coromant 266RL-16UN01A320M 1125 CoroThread™ 266 insert for thread turning
Next
Sandvik Coromant 266RL-16SA01F160E 1135 CoroThread™ 266 insert for thread turning
Previous
![Sandvik Coromant 266RL-16UN01A320M 1125 CoroThread™ 266 insert for thread turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/54598c204/sandvik-coromant-266rl-16un01a320m-1125-corothreadtm-266-insert-for-thread-turning.jpg)
![Sandvik Coromant 266RL-16SA01F160E 1135 CoroThread™ 266 insert for thread turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/54596f978/sandvik-coromant-266rl-16sa01f160e-1135-corothreadtm-266-insert-for-thread-turning.jpg)
R 586,50
inc. vat
Out of stock
SKU
5965642
CoroThread® 266 insert for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroThread® 266 insert for thread turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.004kg |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 9.525mm |
Insert Thickness | 3.96875mm |
D1 - Fixing Hole Diameter | 4.4mm |
HA - Theoretical Thread Height | 2.07mm |
HB - Thread Height Difference | 1.34mm |
CF - Spot Chamfer | 0.72mm |
TPI - Threads Per Inch | 14 |
PDX - Profile Distance Ex | 0.8mm |
PDY - Profile Distance Ey | 1.3mm |
ORDCODE | 266RL-16SA01F140E 1135 |
CHANGEDATE | 2022-06-23 12:12:00.000 |
STDNO - Standard Number | ANSI B1.8-1988 |
Hand | R |
IFS - Insert Mounting Style Code | 8 |
SC - Insert Shape Code | T |
SSC - Insert Seat Size Code | 16 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_TCI16R_1 |
Grade | 1135 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | F |
THFT - Thread Form Type | STAC29 |
TPT - Thread Profile Type | F |
TTP - Thread Type | INT |
TCTR - Thread Tolerance Class | 2G |
CEDC - Cutting Edge Count | 3 |
NT - Tooth Count | 1 |
