Sandvik Coromant 3-80-101112-8-M5W 4325 CoroTurn™ 300 insert for turning
R 495,65
inc. vat
In stock
SKU
6814712

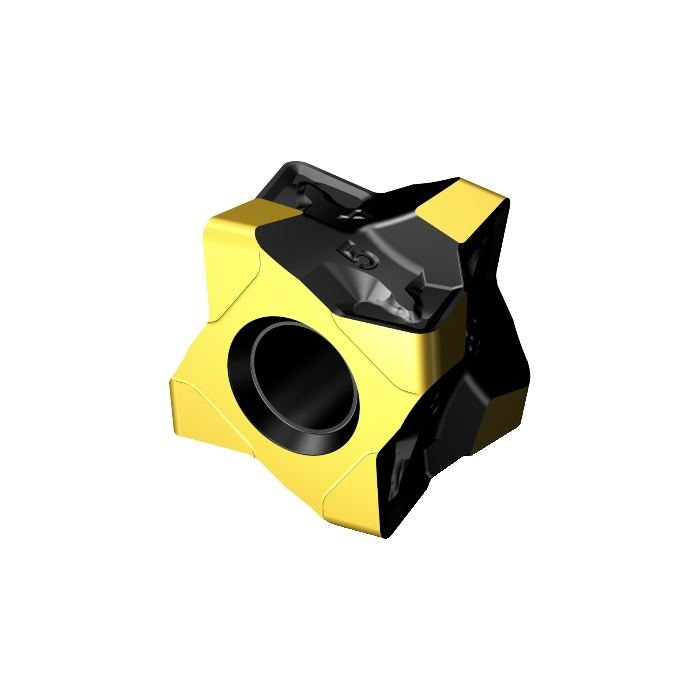

CoroTurn® 300 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 300 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.011kg |
| AN - Clearance Angle Major | 0deg |
| RE - Corner Radius | 1.1906mm |
| Insert Thickness | 11mm |
| D1 - Fixing Hole Diameter | 5.156mm |
| LE - Cutting Edge Effective Length | 4mm |
| KRINS - Major Cutting Edge Angle | 95deg |
| BS - Wiper Edge Length | 0.8mm |
| W1 - Insert Width | 10mm |
| ORDCODE | 3-80-101112-8-M5W 4325 |
| CHANGEDATE | 2022-09-23 20:11:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 2 |
| SSC - Insert Seat Size Code | 10 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_TJ1011_1 |
| Grade | 4325 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | M5W |
| CEDC - Cutting Edge Count | 8 |
| WEP - Wiper Edge Property | True |
