Sandvik Coromant 391.02T-08 12 040 MSSC reduction adaptor
R 2 599,00
inc. vat
Out of stock
SKU
5759322
MSSC reduction adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days

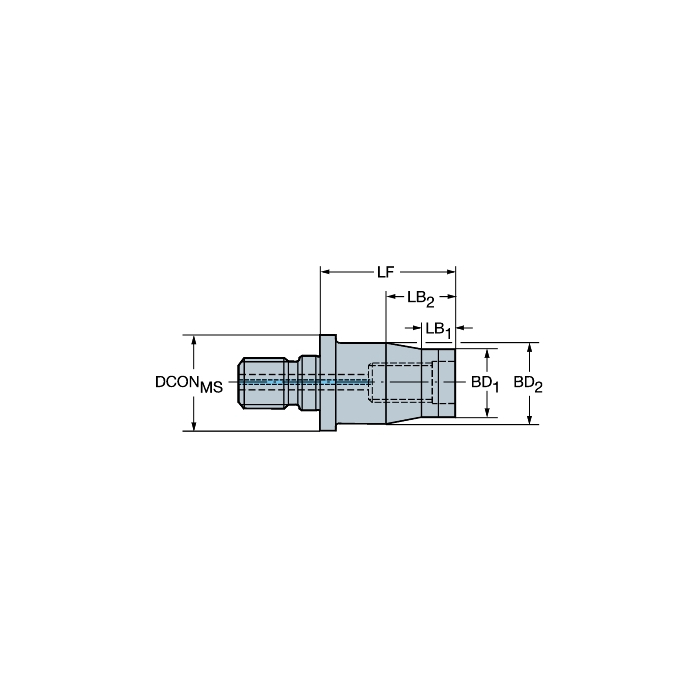

MSSC reduction adaptor
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DCON - Connection Diameter | 20.8mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 40mm |
| BD - Body Diameter | 20.8mm |
| LB - Body Length | 40mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 10Nm |
| WT - Weight Of Item | 0.091kg |
| OAL - Overall Length | 62mm |
| OHX - Maximum Overhang | 40mm |
| ORDCODE | 391.02T-08 12 040 |
| ADINTMS - Adaptive Interface Machine Direction | M_SAC03_A0120_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SAC03_A0080_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-27 19:15:00.000 |
| TDZ - Thread Diameter Size | M 12 |
| DPC - Damping Property | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
