Sandvik Coromant 391.05-32 50 025 VL to arbor adaptor
R 5 516,55
inc. vat
Out of stock
SKU
5759352

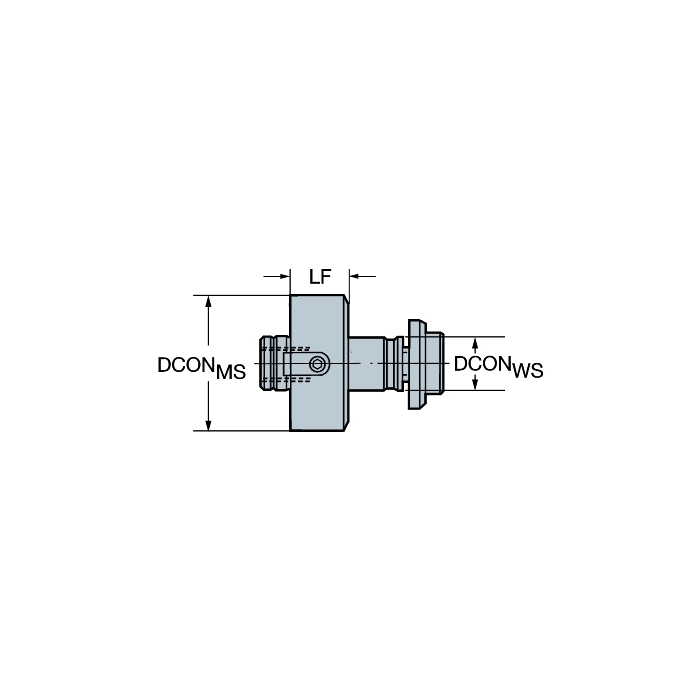

VL to arbor adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
VL to arbor adaptor
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 25mm |
| BD - Body Diameter | 70mm |
| LB - Body Length | 25mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 180Nm |
| WT - Weight Of Item | 0.97kg |
| OAL - Overall Length | 40mm |
| OHX - Maximum Overhang | 25mm |
| ORDCODE | 391.05-32 50 025 |
| ADINTMS - Adaptive Interface Machine Direction | M_VLS01_C0500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_FDA1AB1_G3200_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-27 19:15:00.000 |
| DPC - Damping Property | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
