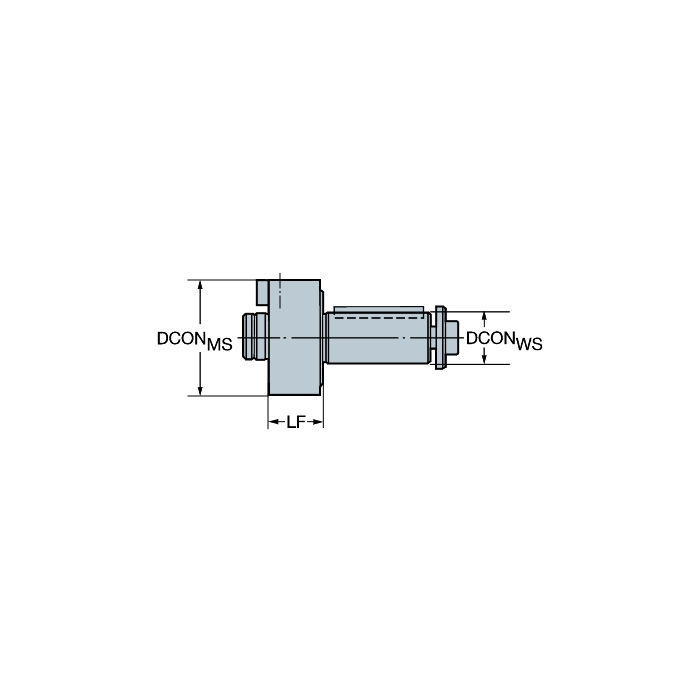

Sandvik Coromant 391.10-22 50 020 VL to side & face mill arbor adaptor
R 5 516,55
inc. vat
Out of stock
SKU
5759358
VL to side and face mill arbor adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
VL to side and face mill arbor adaptor
| DCON - Connection Diameter | 22mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 20mm |
| BD - Body Diameter | 50mm |
| LB - Body Length | 20mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 45Nm |
| WT - Weight Of Item | 0.507kg |
| OAL - Overall Length | 35mm |
| OHX - Maximum Overhang | 20mm |
| LSC - Clamping Length | 40mm |
| ORDCODE | 391.10-22 50 020 |
| ADINTMS - Adaptive Interface Machine Direction | M_VLS01_C0500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_FDA21_G2200_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-27 19:15:00.000 |
| DPC - Damping Property | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
