Sandvik Coromant 392.140277-40 01 055A ISO 7388-1 to ISO 9766 adjustable adaptor
R 17 283,35
inc. vat
Out of stock
SKU
5759726

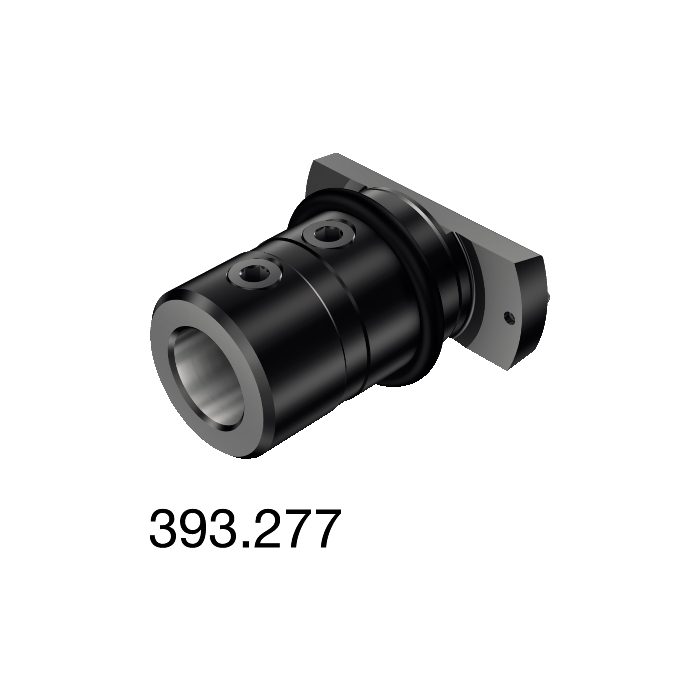

ISO 7388-1 to ISO 9766 adjustable adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
ISO 7388-1 to ISO 9766 adjustable adaptor
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DFC - Functional Diameter | 44.45mm |
| DCON - Connection Diameter | 78mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 55mm |
| BD - Body Diameter | 86mm |
| LB - Body Length | 79.6mm |
| BHTA - Body Half Taper Angle | 0deg |
| RPMX - Rotational Speed Maximum | 120001/min |
| WT - Weight Of Item | 2172g |
| OAL - Overall Length | 147.85mm |
| OHX - Maximum Overhang | 55mm |
| ORDCODE | 392.140277-40 01 055A |
| ADINTMS - Adaptive Interface Machine Direction | M_SKG11_C0400_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_PMC08_C0780_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| CRKS - Connection Retention Knob Thread Size | M16 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-02 08:06:00.000 |
| STDLET - Standard Letter | AD |
| STDNO - Standard Number | DIN69871 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
