Sandvik Coromant 392.41005-100 32 050A HSK to arbor adaptor
Next
Sandvik Coromant 392.140277-50 02 055A ISO 7388-1 to ISO 9766 adjustable adaptor
Previous
![Sandvik Coromant 392.41005-100 32 050A HSK to arbor adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/524894df0/sandvik-coromant-392-41005-100-32-050a-hsk-to-arbor-adaptor.jpg)
![Sandvik Coromant 392.140277-50 02 055A ISO 7388-1 to ISO 9766 adjustable adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/524873be4/sandvik-coromant-392-140277-50-02-055a-iso-7388-1-to-iso-9766-adjustable-adaptor.jpg)
R 32 678,40
inc. vat
Out of stock
SKU
5759729

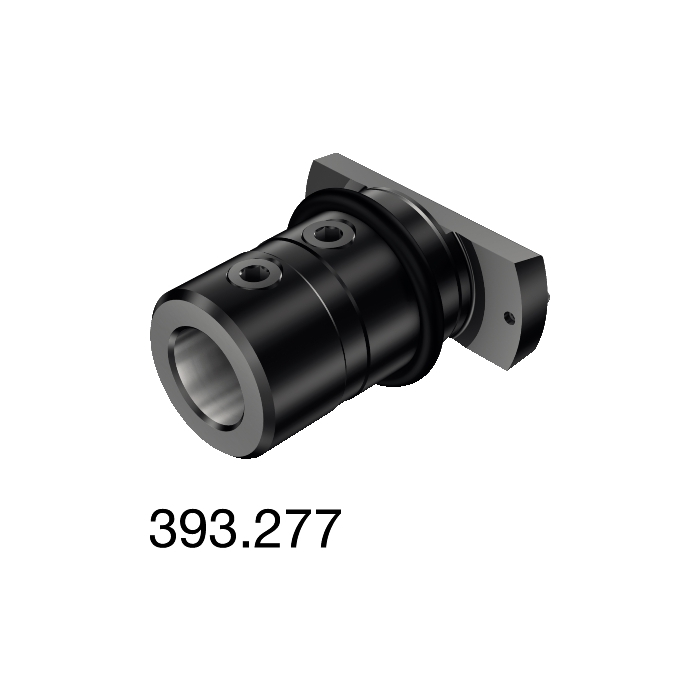

ISO 7388-1 to ISO 9766 adjustable adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
ISO 7388-1 to ISO 9766 adjustable adaptor
CP - Coolant Pressure | 2000000Pa |
---|---|
DFC - Functional Diameter | 69.85mm |
DCON - Connection Diameter | 136mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 75mm |
BD - Body Diameter | 140mm |
LB - Body Length | 85mm |
BHTA - Body Half Taper Angle | 0deg |
RPMX - Rotational Speed Maximum | 60001/min |
WT - Weight Of Item | 6.802kg |
OAL - Overall Length | 186.6mm |
OHX - Maximum Overhang | 75mm |
ORDCODE | 392.140277-50 03 075A |
ADINTMS - Adaptive Interface Machine Direction | M_SKG11_C0500_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_PMC08_C1360_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 1 |
CRKS - Connection Retention Knob Thread Size | M24 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-22 10:06:00.000 |
STDLET - Standard Letter | AD |
STDNO - Standard Number | DIN69871 |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
BBD - Balanced By Design | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
