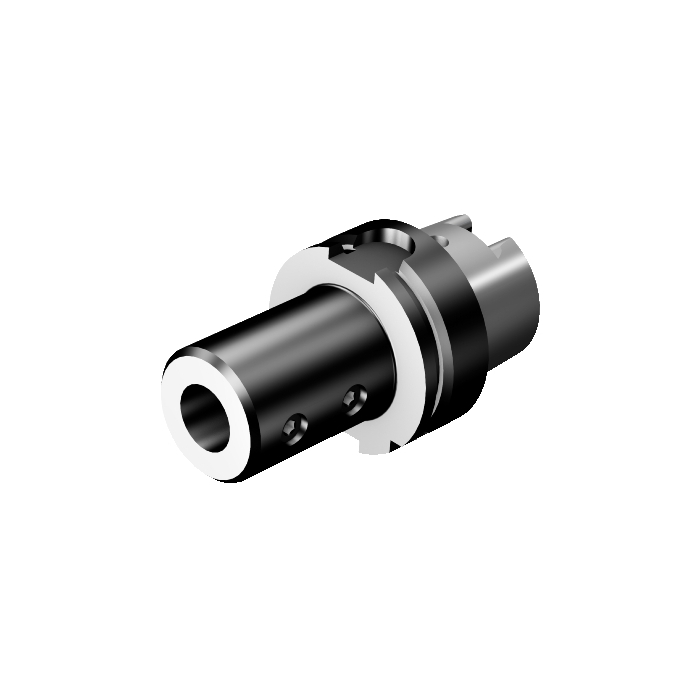

Sandvik Coromant 392.41027-63 32 090B HSK to ISO 9766 adaptor
R 4 380,35
inc. vat
In stock
SKU
5759951
HSK to ISO 9766 adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to ISO 9766 adaptor
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DFC - Functional Diameter | 48.01mm |
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 90mm |
| BD - Body Diameter | 63mm |
| LB - Body Length | 90mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 30Nm |
| RPMX - Rotational Speed Maximum | 205001/min |
| WT - Weight Of Item | 1.32kg |
| OAL - Overall Length | 122mm |
| OHX - Maximum Overhang | 90mm |
| LSC - Clamping Length | 61.5mm |
| ORDCODE | 392.41027-63 32 090B |
| ADINTMS - Adaptive Interface Machine Direction | M_HSK01_C0630_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLISO_G3200_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-21 01:00:00.000 |
| STDLET - Standard Letter | A |
| STDNO - Standard Number | DIN69893-1 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
