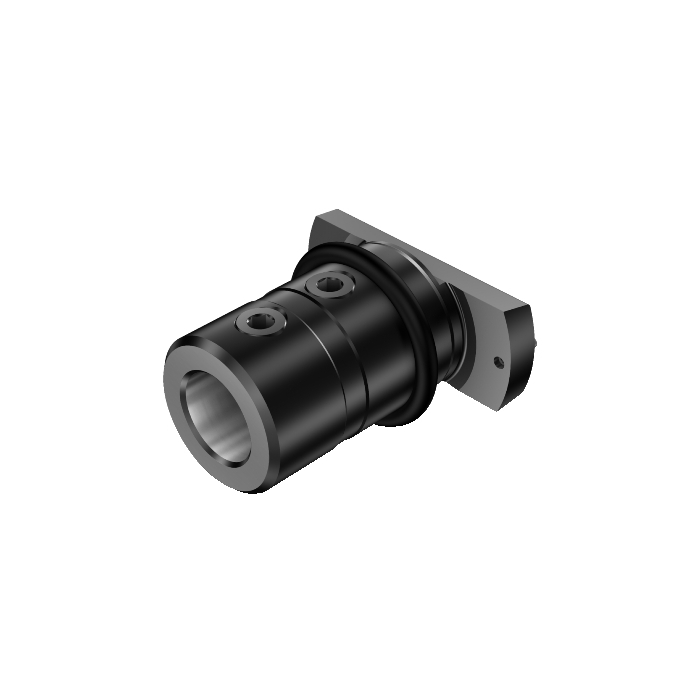

Sandvik Coromant 392.410277-100 02 065A HSK to ISO 9766 adjustable adaptor
R 21 484,30
inc. vat
Out of stock
SKU
5759952
HSK to ISO 9766 adjustable adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to ISO 9766 adjustable adaptor
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DFC - Functional Diameter | 75.013mm |
| DCON - Connection Diameter | 98mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 65mm |
| BD - Body Diameter | 106mm |
| LB - Body Length | 89.6mm |
| BHTA - Body Half Taper Angle | 0deg |
| RPMX - Rotational Speed Maximum | 90001/min |
| WT - Weight Of Item | 4.525kg |
| OAL - Overall Length | 139.6mm |
| OHX - Maximum Overhang | 65mm |
| ORDCODE | 392.410277-100 02 065A |
| ADINTMS - Adaptive Interface Machine Direction | M_HSK01_C1000_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_PMC08_C0980_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-14 16:05:00.000 |
| STDLET - Standard Letter | A |
| STDNO - Standard Number | DIN69893-1 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
