Sandvik Coromant 392.410T-63 08 134 HSK to MSSC adaptor
R 6 821,80
inc. vat
Out of stock
SKU
5759913
HSK to MSSC adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days

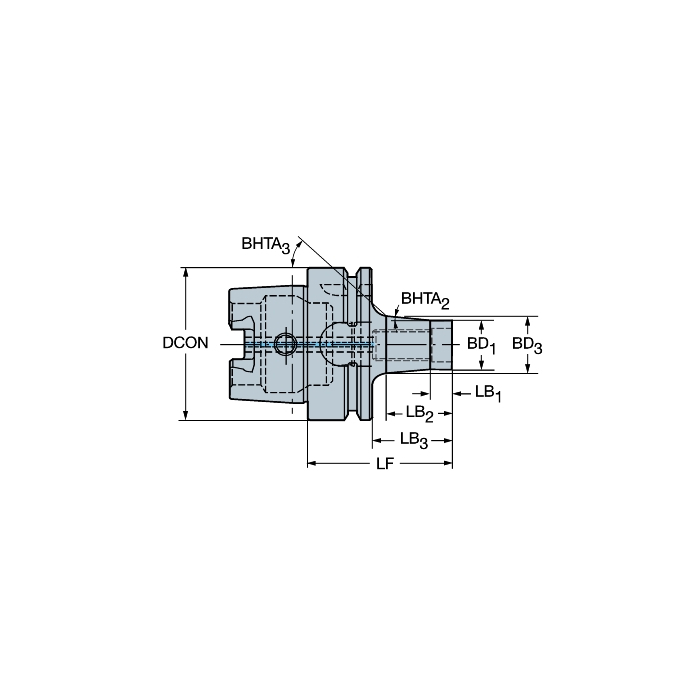

HSK to MSSC adaptor
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DFC - Functional Diameter | 48.01mm |
| DCON - Connection Diameter | 63mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 134mm |
| BD - Body Diameter | 63mm |
| LB - Body Length | 134mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 10Nm |
| WT - Weight Of Item | 1.019kg |
| OAL - Overall Length | 166mm |
| OHX - Maximum Overhang | 134mm |
| ORDCODE | 392.410T-63 08 134 |
| ADINTMS - Adaptive Interface Machine Direction | M_HSK01_C0630_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SAC03_A0080_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-27 19:16:00.000 |
| STDLET - Standard Letter | A |
| STDNO - Standard Number | DIN69893-1 |
| TDZ - Thread Diameter Size | M 8 |
| DPC - Damping Property | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
