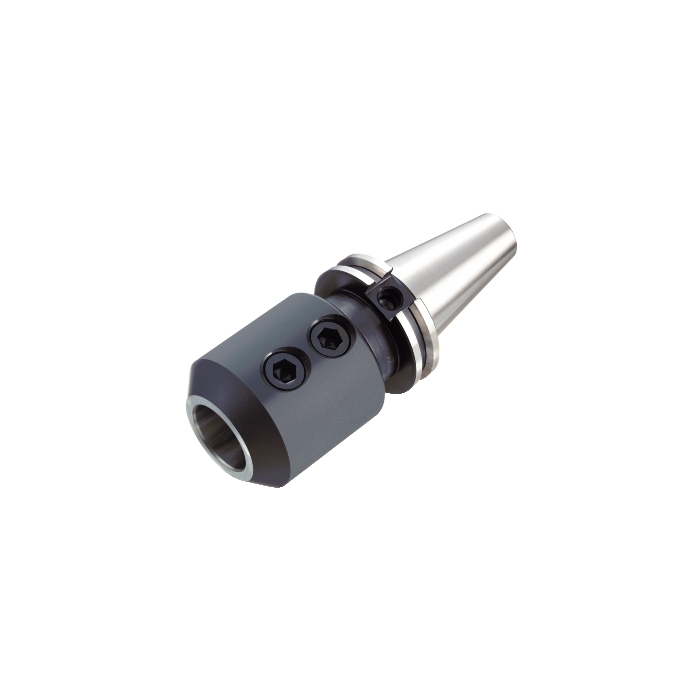

Sandvik Coromant 392.45520-40 12 067 CAT-V to Weldon adaptor

Name: Sandvik Coromant 392.45520-40 12 067 CAT-V to Weldon adaptor
SKU: 5760106
Price: 4215.90 ZAR
Availability: OutOfStock

R 4 215,90 inc. vat

Out of stock

SKU

5760106

CAT-V to Weldon adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CAT-V to Weldon adaptor

More Information
CP - Coolant Pressure	2000000Pa
DFC - Functional Diameter	44.45mm
DCON - Connection Diameter	12mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	66.55mm
BD - Body Diameter	63.5mm
LB - Body Length	66.5mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	12Nm
RPMX - Rotational Speed Maximum	180001/min
WT - Weight Of Item	1.168kg
OAL - Overall Length	134.95mm
OHX - Maximum Overhang	66.55mm
ORDCODE	392.45520-40 12 067
ADINTMS - Adaptive Interface Machine Direction	M_SKG37_C0400_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CYLW_G1200_1
CNSC - Coolant Entry Style Code	7
CXSC - Coolant Exit Style Code	1
CRKS - Connection Retention Knob Thread Size	5/8"-11
BMC - Body Material Code	1
CHANGEDATE	2022-08-27 19:16:00.000
STDLET - Standard Letter	AD/B
STDNO - Standard Number	ASME B5.50
DPC - Damping Property	False
BBD - Balanced By Design	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
