Sandvik Coromant 392.55T-40 12 058 MAS-BT 403 to MSSC adaptor
R 4 872,55
inc. vat
Out of stock
SKU
5760137

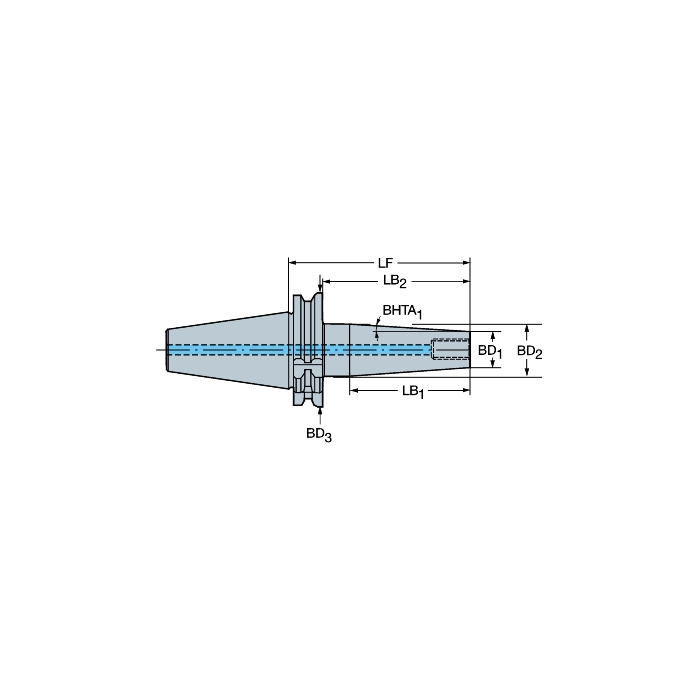

MAS-BT 403 to MSSC adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
MAS-BT 403 to MSSC adaptor
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DFC - Functional Diameter | 44.45mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 58mm |
| BD - Body Diameter | 63mm |
| LB - Body Length | 58mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 15Nm |
| WT - Weight Of Item | 1.14kg |
| OAL - Overall Length | 126.4mm |
| OHX - Maximum Overhang | 58mm |
| ORDCODE | 392.55T-40 12 058 |
| ADINTMS - Adaptive Interface Machine Direction | M_SKG51_C0400_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SAC03_A0120_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| CRKS - Connection Retention Knob Thread Size | M16 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-27 19:16:00.000 |
| STDLET - Standard Letter | AD |
| STDNO - Standard Number | MAS403-BT |
| TDZ - Thread Diameter Size | M 12 |
| DPC - Damping Property | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
