Sandvik Coromant 392.58277-50 02 063A MAS-BT 403 to ISO 9766 adjustable adaptor
R 19 222,25
inc. vat
Out of stock
SKU
5760140

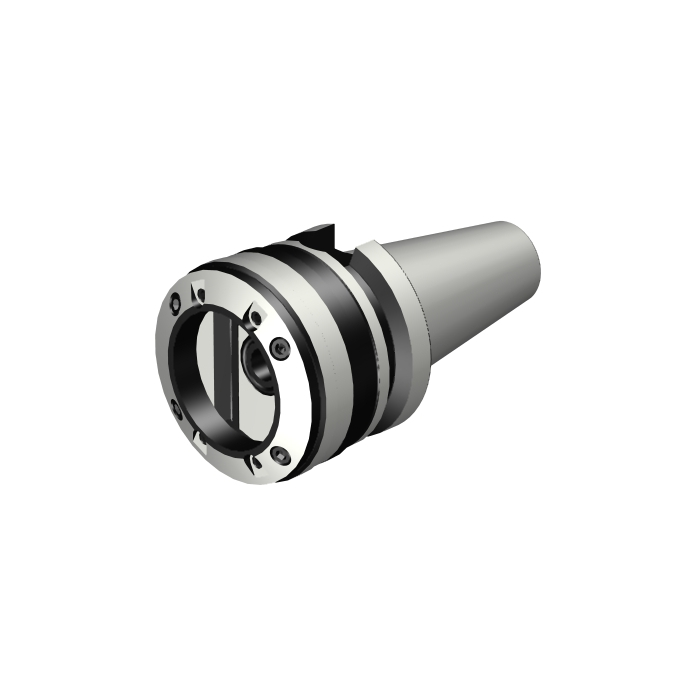

MAS-BT 403 to ISO 9766 adjustable adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
MAS-BT 403 to ISO 9766 adjustable adaptor
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DFC - Functional Diameter | 69.85mm |
| DCON - Connection Diameter | 98mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 63mm |
| BD - Body Diameter | 106mm |
| LB - Body Length | 87.6mm |
| BHTA - Body Half Taper Angle | 0deg |
| RPMX - Rotational Speed Maximum | 90001/min |
| WT - Weight Of Item | 5.665kg |
| OAL - Overall Length | 189.4mm |
| OHX - Maximum Overhang | 63mm |
| ORDCODE | 392.58277-50 02 063A |
| ADINTMS - Adaptive Interface Machine Direction | M_SKG51_C0500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_PMC08_C0980_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| CRKS - Connection Retention Knob Thread Size | M24 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-05-11 01:05:00.000 |
| STDLET - Standard Letter | AD |
| STDNO - Standard Number | MAS403-BT |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
