R 3 366,05
inc. vat
In stock
SKU
5760017
CAT-V to Weldon adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days

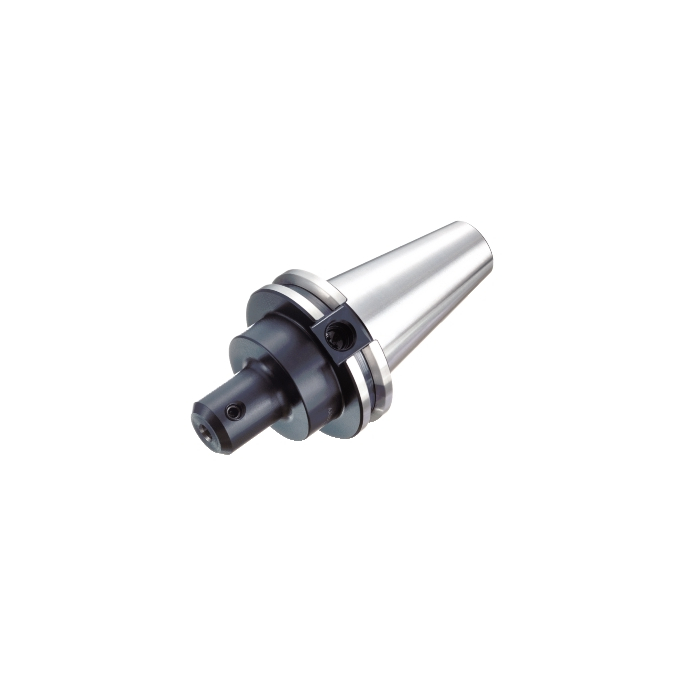

CAT-V to Weldon adaptor
CP - Coolant Pressure | 2000000Pa |
---|---|
DFC - Functional Diameter | 44.45mm |
DCON - Connection Diameter | 25mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 101.6mm |
BD - Body Diameter | 63.5mm |
LB - Body Length | 101.6mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 25Nm |
RPMX - Rotational Speed Maximum | 180001/min |
WT - Weight Of Item | 1.716kg |
OAL - Overall Length | 170mm |
OHX - Maximum Overhang | 101.6mm |
ORDCODE | 392.45520-40 25 100 |
ADINTMS - Adaptive Interface Machine Direction | M_SKG37_C0400_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_CYLW_G2500_1 |
CNSC - Coolant Entry Style Code | 7 |
CXSC - Coolant Exit Style Code | 1 |
DCPS - Data Chip Provision Size | 2 |
CRKS - Connection Retention Knob Thread Size | 5/8"-11 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2021-12-20 22:32:00.000 |
STDLET - Standard Letter | AD/B |
STDNO - Standard Number | ASME B5.50 |
DPC - Damping Property | False |
DCP - Data Chip Provision | True |
BBD - Balanced By Design | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
