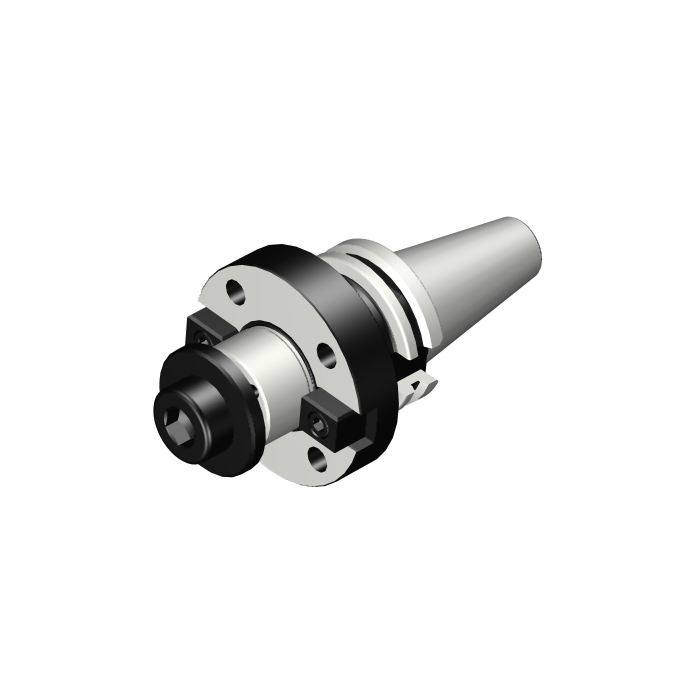

Sandvik Coromant 392.54005C4040055M BIG-PLUS ISO to arbor adaptor
R 5 620,05
inc. vat
Out of stock
SKU
6228964
BIG-PLUS ISO to arbor adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
BIG-PLUS ISO to arbor adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 44.45mm |
| DCON - Connection Diameter | 40mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 55mm |
| BD - Body Diameter | 87mm |
| LB - Body Length | 55mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 300Nm |
| RPMX - Rotational Speed Maximum | 180001/min |
| WT - Weight Of Item | 2.301kg |
| OAL - Overall Length | 123.4mm |
| OHX - Maximum Overhang | 55mm |
| DBC - Diameter Bolt Circle | 66.7mm |
| ORDCODE | 392.54005C4040055M |
| ADINTMS - Adaptive Interface Machine Direction | M_SKG17BP_C0400_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_FDA1ABC_G4000_1 |
| CNSC - Coolant Entry Style Code | 7 |
| CXSC - Coolant Exit Style Code | 4 |
| CRKS - Connection Retention Knob Thread Size | M16 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-03-22 05:09:00.000 |
| STDLET - Standard Letter | AD/B |
| STDNO - Standard Number | BIG-PLUS |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
