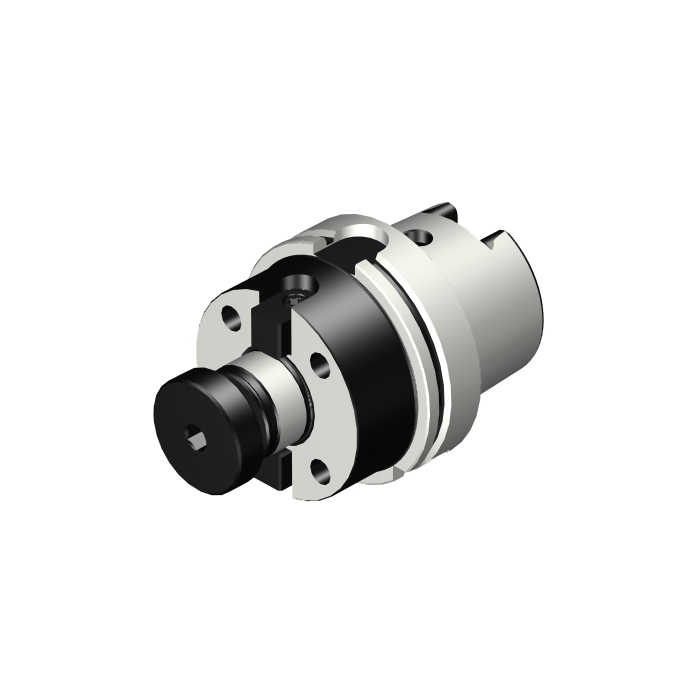

Sandvik Coromant A392.41005-100 38 060M HSK to arbor adaptor

R 6 415,85 inc. vat
In stock
SKU
6228963
HSK to arbor adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to arbor adaptor
More Information
DFC - Functional Diameter 75.013mm
DCON - Connection Diameter 38.1mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 60mm
BD - Body Diameter 100mm
LB - Body Length 60mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 220Nm
WT - Weight Of Item 3.657kg
OAL - Overall Length 110mm
OHX - Maximum Overhang 60mm
DBC - Diameter Bolt Circle 66.7mm
ORDCODE A392.41005-100 38 060M
ADINTMS - Adaptive Interface Machine Direction M_HSK01_C1000_1
ADINTWS - Adaptive Interface Workpiece Direction W_FDA1ABC_S1500_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-09-04 01:04:00.000
STDLET - Standard Letter A
STDNO - Standard Number DIN69893-1
DPC - Damping Property False
DCP - Data Chip Provision False
BBD - Balanced By Design True
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
