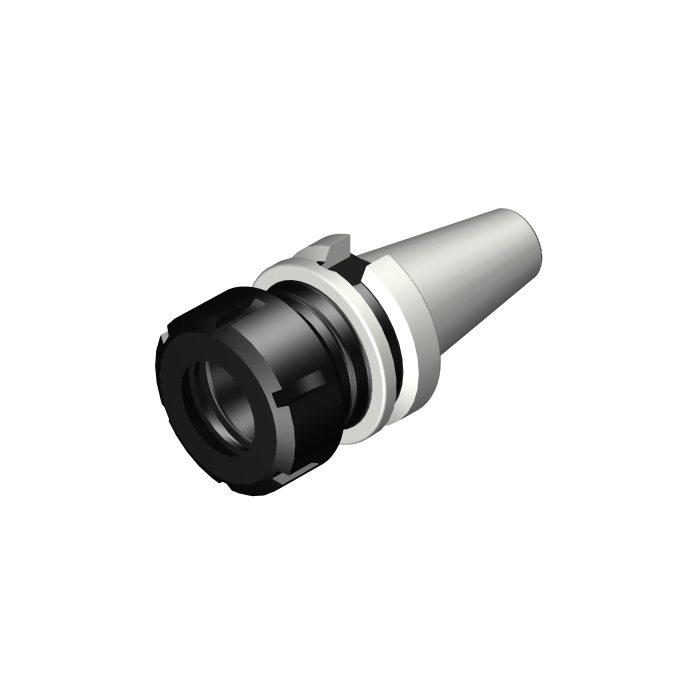

Sandvik Coromant 392.55514-4040070 BIG-PLUS MAS-BT to ER collet chuck
R 5 620,05
inc. vat
In stock
SKU
6078806
BIG-PLUS MAS-BT to ER collet chuck
Reliable nationwide shipping
Delivery in 4 - 5 days
BIG-PLUS MAS-BT to ER collet chuck
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 40mm |
| DCON - Connection Diameter | 41mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 55mm |
| BD - Body Diameter | 63mm |
| LB - Body Length | 70mm |
| BHTA - Body Half Taper Angle | 0deg |
| RPMX - Rotational Speed Maximum | 180001/min |
| WT - Weight Of Item | 1.367kg |
| OAL - Overall Length | 138.4mm |
| OHX - Maximum Overhang | 55mm |
| ORDCODE | 392.55514-4040070 |
| ADINTMS - Adaptive Interface Machine Direction | M_SKG57BP_C0400_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CLTERB_C0400_1 |
| CNSC - Coolant Entry Style Code | 7 |
| CXSC - Coolant Exit Style Code | 1 |
| CRKS - Connection Retention Knob Thread Size | M16 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-03-16 09:08:00.000 |
| STDLET - Standard Letter | AD/B |
| STDNO - Standard Number | MAS403-BT (BIG-PLUS) |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
