Sandvik Coromant 392.T63SL-40RF HSK to CoroTurn™ SL adaptor Previous Sandvik Coromant 392.T63SL-40RF HSK to CoroTurn™ SL adaptor

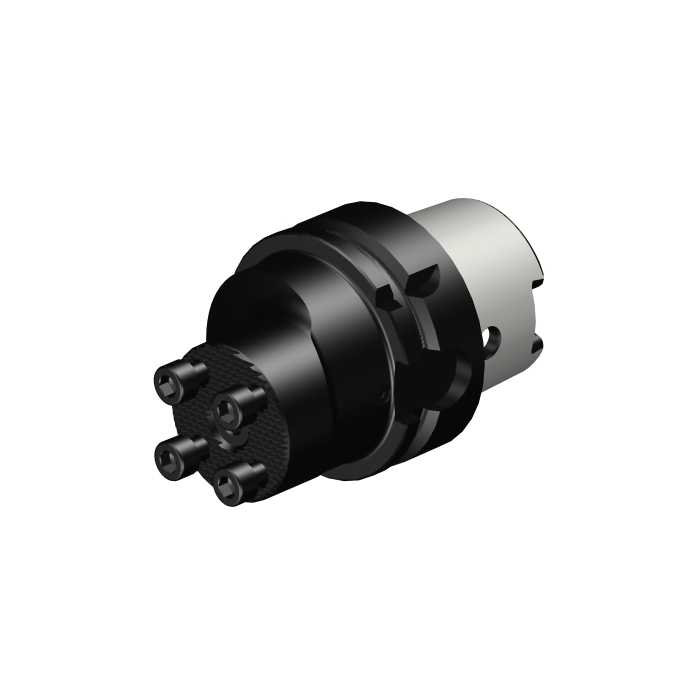

Sandvik Coromant 392.T63SL-40RG HSK to CoroTurn™ SL adaptor

R 10 442,00 inc. vat
In stock
SKU
6078820
HSK to CoroTurn® SL adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to CoroTurn® SL adaptor
More Information
CP - Coolant Pressure 15000000Pa
DFC - Functional Diameter 48.01mm
DCON - Connection Diameter 40mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 67mm
TQ - Torque 17Nm
WT - Weight Of Item 1.132kg
OAL - Overall Length 99.2245mm
OHX - Maximum Overhang 67mm
BAWS - Workpiece Side Body Angle 0deg
WF - Functional Width 11.5mm
HF - Functional Height 0mm
LPR - Protruding Length 67mm
ORDCODE 392.T63SL-40RG
ADINTMS - Adaptive Interface Machine Direction M_HSK07_C0630_1
ADINTWS - Adaptive Interface Workpiece Direction W_SLHDSS_C0400_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 1
DCPS - Data Chip Provision Size 2
BMC - Body Material Code 1
CHANGEDATE 2022-06-09 10:36:00.000
STDLET - Standard Letter T
STDNO - Standard Number ISO12164-3
Hand R
DPC - Damping Property False
DCP - Data Chip Provision True
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
