Sandvik Coromant 393.277-25 01 080A Slide to adjustable drill adaptor
Next
Sandvik Coromant 393.277-20 01 075A Slide to adjustable drill adaptor
Previous
Sandvik Coromant 393.277-20 01 075A Slide to adjustable drill adaptor
Previous
Sandvik Coromant 393.277-20 02 075A Slide to adjustable drill adaptor
R 6 141,00
inc. vat
In stock
SKU
5760589
Slide to adjustable drill adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days

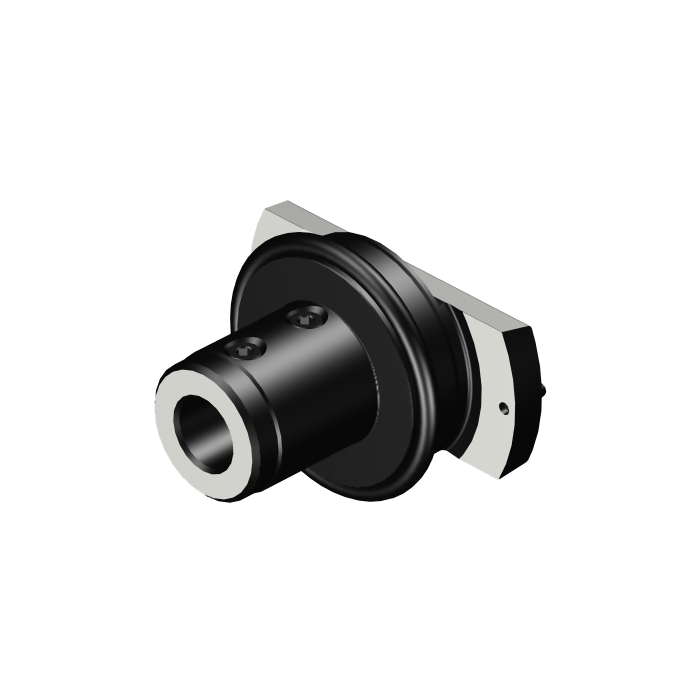

Slide to adjustable drill adaptor
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DCON - Connection Diameter | 20mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 75mm |
| BD - Body Diameter | 98mm |
| LB - Body Length | 75mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 12Nm |
| WT - Weight Of Item | 1.166kg |
| OAL - Overall Length | 75mm |
| OHX - Maximum Overhang | 75mm |
| ORDCODE | 393.277-20 02 075A |
| ADINTMS - Adaptive Interface Machine Direction | M_PMC08_C0980_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLISO_G2000_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-05-30 14:50:00.000 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
