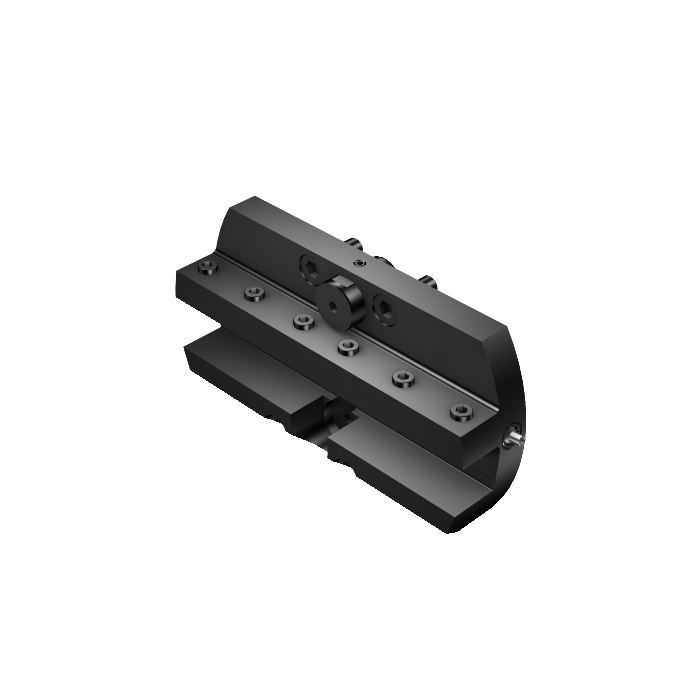

Sandvik Coromant 570-200 3232-M CoroTurn™ SL to rectangular shank adaptor
R 50 616,10
inc. vat
Out of stock
SKU
5918355
CoroTurn® SL to rectangular shank adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® SL to rectangular shank adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 23mm |
| WT - Weight Of Item | 6.14kg |
| OAL - Overall Length | 74mm |
| OHX - Maximum Overhang | 23mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 97.4mm |
| HF - Functional Height | 32mm |
| H - Shank Height | 105mm |
| LPR - Protruding Length | 55mm |
| B - Shank Width | 122mm |
| OAH - Overall Height | 115mm |
| OAW - Overall Width | 205mm |
| RADH - Radial Body Height | 60mm |
| TD - Thread Diameter | 10mm |
| ORDCODE | 570-200 3232-M |
| ADINTMS - Adaptive Interface Machine Direction | M_BLTC1_C2571_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_VKT01_A3232_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-26 14:31:00.000 |
| Hand | L |
| CCONWS - Workpiece Side Connection Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
