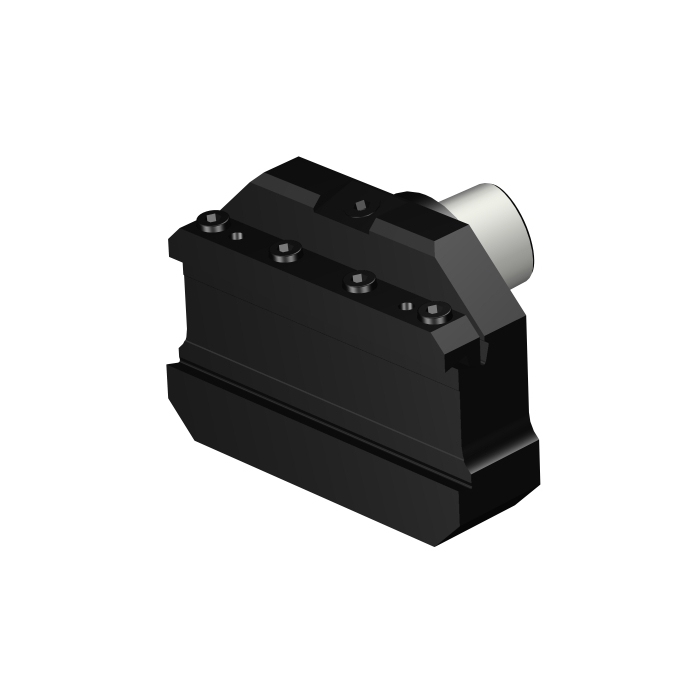

Sandvik Coromant C6-APBA-80068-45 Coromant Capto™ to blade adaptor

R 21 598,15 inc. vat
Out of stock
SKU
5954915
Coromant Capto® to blade adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to blade adaptor
More Information
CP - Coolant Pressure 8000000Pa
DFC - Functional Diameter 44mm
DCON - Connection Diameter 63mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 60.5mm
WT - Weight Of Item 5.469kg
OAL - Overall Length 106mm
OHX - Maximum Overhang 60.5mm
BAWS - Workpiece Side Body Angle 90deg
WF - Functional Width 80mm
HF - Functional Height 45mm
LPR - Protruding Length 67.7mm
OAH - Overall Height 114mm
OAW - Overall Width 160mm
RADH - Radial Body Height 72mm
RADW - Radial Body Width 80mm
DIX - Maximum Tool Changer Interference Diameter 198mm
ORDCODE C6-APBA-80068-45
ADINTMS - Adaptive Interface Machine Direction M_CCS01_C0630_1
ADINTWS - Adaptive Interface Workpiece Direction W_PMC012_C0450_1
CNSC - Coolant Entry Style Code 3
CXSC - Coolant Exit Style Code 5
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 13:49:00.000
STDNO - Standard Number ISO26623-1
Hand L
CCONWS - Workpiece Side Connection Count 1
DPC - Damping Property False
DCP - Data Chip Provision False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
