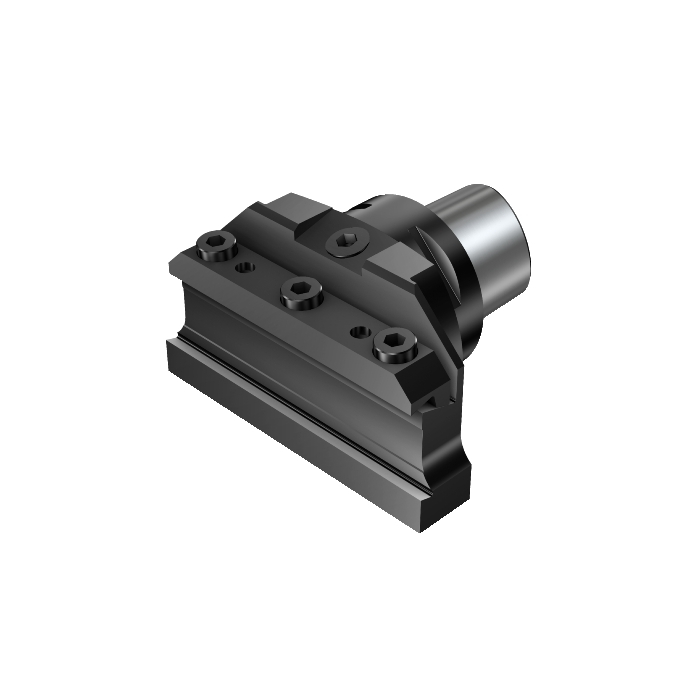

Sandvik Coromant C8-APBA-80068-45 Coromant Capto™ to blade adaptor
R 26 997,40
inc. vat
In stock
SKU
5954916
Coromant Capto® to blade adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to blade adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 55mm |
| DCON - Connection Diameter | 80mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 60.5mm |
| WT - Weight Of Item | 5.69kg |
| OAL - Overall Length | 115.7mm |
| OHX - Maximum Overhang | 60.5mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 80mm |
| HF - Functional Height | 45mm |
| LPR - Protruding Length | 68mm |
| OAH - Overall Height | 114mm |
| OAW - Overall Width | 160mm |
| RADH - Radial Body Height | 72mm |
| RADW - Radial Body Width | 80mm |
| DIX - Maximum Tool Changer Interference Diameter | 198mm |
| ORDCODE | C8-APBA-80068-45 |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0800_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_PMC012_C0450_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 5 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-21 07:08:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| Hand | L |
| CCONWS - Workpiece Side Connection Count | 1 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
