Sandvik Coromant 570-32R151.3-10-40 T-Max™ Q-Cut head for grooving

R 3 088,90 inc. vat
In stock
SKU
5765157
T-Max® Q-Cut head for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® Q-Cut head for grooving
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 32mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 14mm
TQ - Torque 3Nm
WT - Weight Of Item 90g
OAL - Overall Length 17.8mm
OHX - Maximum Overhang 11.5mm
KAPR - Tool Cutting Edge Angle 90deg
DMIN - Minimum Bore Diameter 48mm
BAWS - Workpiece Side Body Angle 90deg
WF - Functional Width 27.6mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 6.106mm
CW - Cutting Width 4mm
CDX - Cutting Depth Maximum 10mm
ORDCODE 570-32R151.3-10-40
ADINTMS - Adaptive Interface Machine Direction M_SLHDS_C0320_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 5
BMC - Body Material Code 1
CHANGEDATE 2022-09-01 01:08:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CB3G40_1
Hand R

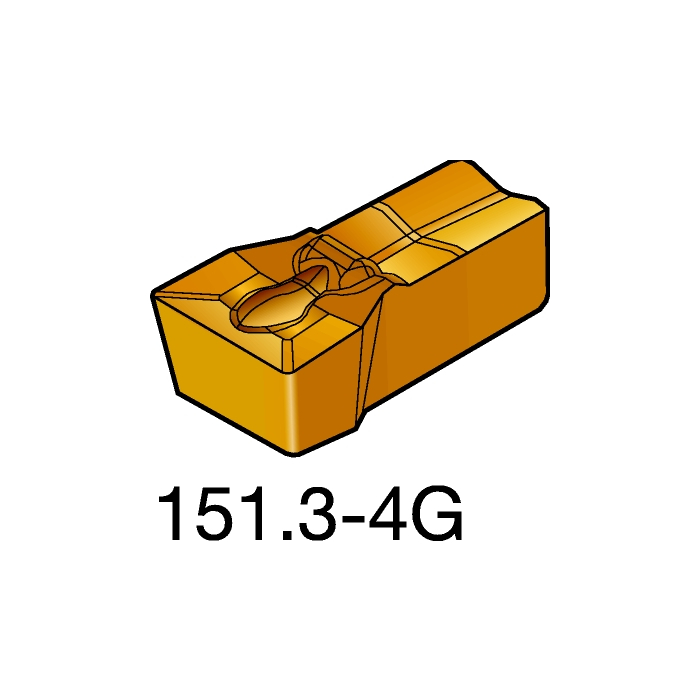

MIID - Master Insert Identification N151.3-400-40- 4G
SSC - Insert Seat Size Code 40
CICT - Cutting Item Count 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
