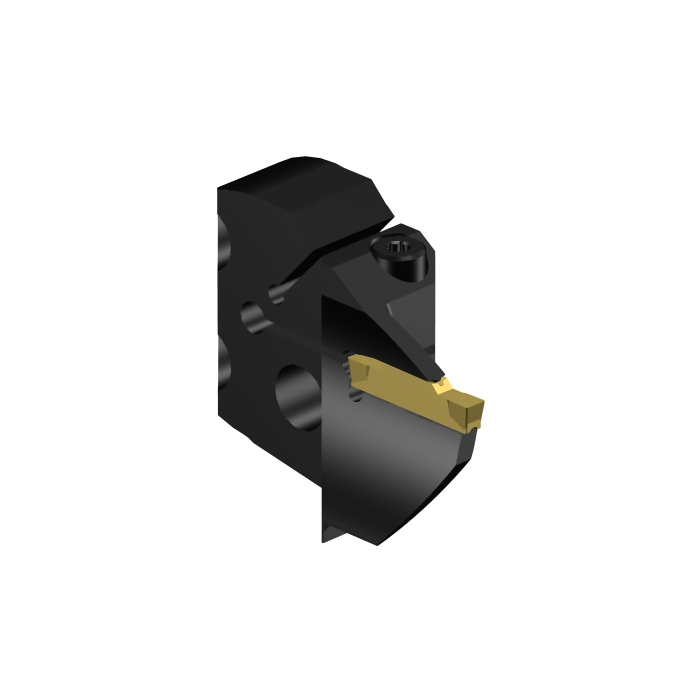

Sandvik Coromant 570-40R123H18B040B CoroCut™ 1-2 head for face grooving

Name: Sandvik Coromant 570-40R123H18B040B CoroCut™ 1-2 head for face grooving
SKU: 6038492
Price: 4547.10 ZAR
Availability: InStock

R 4 547,10 inc. vat

In stock

SKU

6038492

CoroCut® 1-2 head for face grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 head for face grooving

More Information
CP - Coolant Pressure	4000000Pa
DCON - Connection Diameter	40mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	18mm
TQ - Torque	3Nm
WT - Weight Of Item	0.23kg
OAL - Overall Length	32.1mm
OHX - Maximum Overhang	18mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	90deg
WF - Functional Width	45.1mm
HF - Functional Height	0.1mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	4.35mm
LPR - Protruding Length	28.3mm
CW - Cutting Width	4mm
CDX - Cutting Depth Maximum	18mm
DAXN - Minimum Axial Groove Outside Diameter	48mm
DAXX - Maximum Axial Groove Outside Diameter	60mm
ORDCODE	570-40R123H18B040B
ADINTMS - Adaptive Interface Machine Direction	M_SLHDS_C0400_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 15:04:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCH2_5
Hand	R
MIID - Master Insert Identification	N123H2-0400-0004-TF
SSC - Insert Seat Size Code	H
CICT - Cutting Item Count	1
AXGSUP - Axial Groove Support Direction	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
