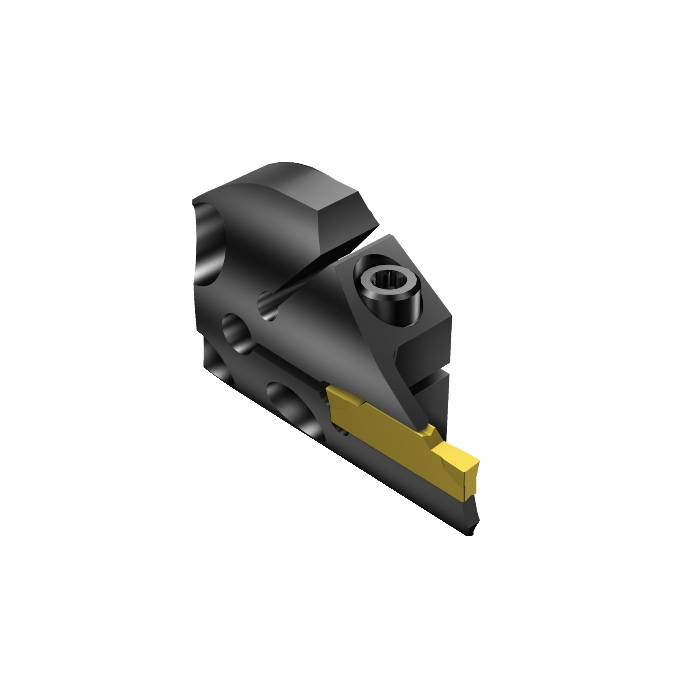

Sandvik Coromant 570-40R123K18B220B CoroCut™ 1-2 head for face grooving
Next
Sandvik Coromant 570-40R123K18B168B CoroCut™ 1-2 head for face grooving
Previous
![Sandvik Coromant 570-40R123K18B220B CoroCut™ 1-2 head for face grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/54764db71/sandvik-coromant-570-40r123k18b220b-corocuttm-1-2-head-for-face-grooving.jpg)
![Sandvik Coromant 570-40R123K18B168B CoroCut™ 1-2 head for face grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/54762fd01/sandvik-coromant-570-40r123k18b168b-corocuttm-1-2-head-for-face-grooving.jpg)
R 4 547,10
inc. vat
In stock
SKU
6038525
CoroCut® 1-2 head for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 head for face grooving
CP - Coolant Pressure | 4000000Pa |
---|---|
DCON - Connection Diameter | 40mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 18mm |
TQ - Torque | 4Nm |
WT - Weight Of Item | 0.238kg |
OAL - Overall Length | 21.8mm |
OHX - Maximum Overhang | 18mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 90deg |
WF - Functional Width | 45.1mm |
HF - Functional Height | 0.1mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 4.35mm |
CW - Cutting Width | 6mm |
CDX - Cutting Depth Maximum | 18mm |
DAXN - Minimum Axial Groove Outside Diameter | 232mm |
DAXX - Maximum Axial Groove Outside Diameter | 1000mm |
ORDCODE | 570-40R123K18B220A |
ADINTMS - Adaptive Interface Machine Direction | M_SLHDS_C0400_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 2 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 15:04:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCK2_5 |
Hand | R |
MIID - Master Insert Identification | N123K2-0600-0004-TF |
SSC - Insert Seat Size Code | K |
CICT - Cutting Item Count | 1 |
AXGSUP - Axial Groove Support Direction | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
