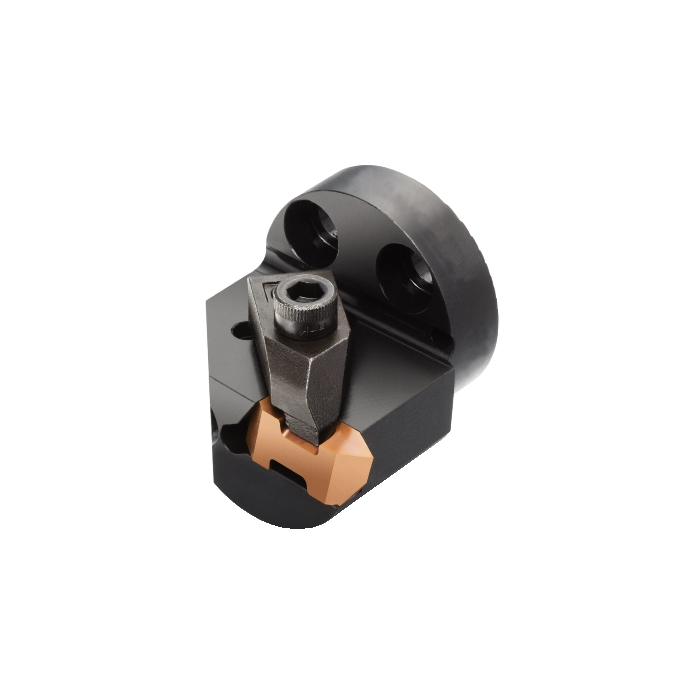

Sandvik Coromant 570C-TLER-25-2 Top Lok head for grooving
R 5 931,70
inc. vat
In stock
SKU
5765044
Top Lok head for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
Top Lok head for grooving
| DCON - Connection Diameter | 25mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 25mm |
| BD - Body Diameter | 25mm |
| TQ - Torque | 3Nm |
| WT - Weight Of Item | 0.067kg |
| OAL - Overall Length | 28.9mm |
| OHX - Maximum Overhang | 25mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 16.9926mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 5.5626mm |
| CDX - Cutting Depth Maximum | 2.8mm |
| W1 - Insert Width | 3.81mm |
| ORDCODE | 570C-TLER-25-2 |
| ADINTMS - Adaptive Interface Machine Direction | M_SLHDS_C0250_1 |
| CNSC - Coolant Entry Style Code | 8 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-20 23:52:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CL2L_1 |
| Hand | R |
| MIID - Master Insert Identification | TLG-2125L |
| SSC - Insert Seat Size Code | 2 |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
