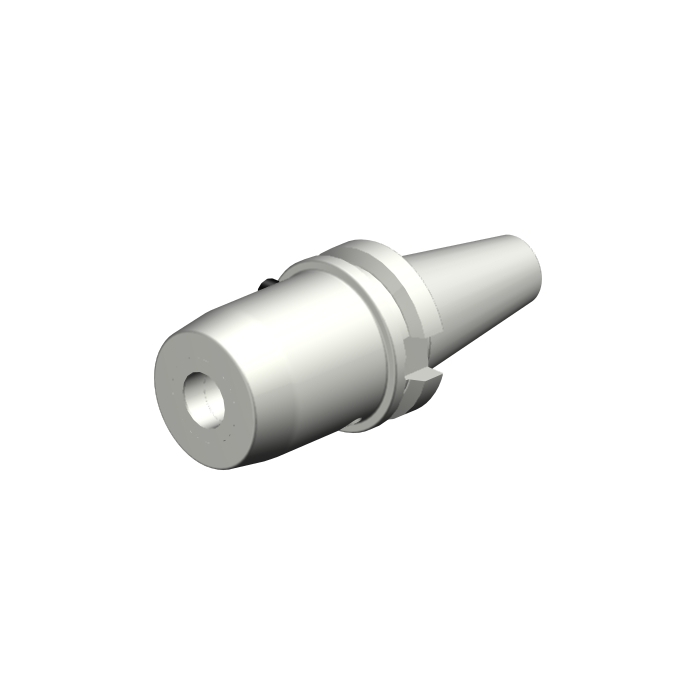

Sandvik Coromant 930-B40-HD-20-088 MAS-BT 403 to CoroChuckâ„¢ 930

R 10 206,25 inc. vat
In stock
SKU
6255498
MAS-BT 403 to CoroChuck™ 930
Reliable nationwide shipping
Delivery in 4 - 5 days
MAS-BT 403 to CoroChuck™ 930
More Information
CP - Coolant Pressure 8000000Pa
DFC - Functional Diameter 44.45mm
DCON - Connection Diameter 20mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 88mm
BD - Body Diameter 63mm
LB - Body Length 88mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 10Nm
RPMX - Rotational Speed Maximum 180001/min
WT - Weight Of Item 1.875kg
OAL - Overall Length 156.4mm
OHX - Maximum Overhang 88mm
LSC - Clamping Length 51mm
OHN - Minimum Overhang 88mm
ORDCODE 930-B40-HD-20-088
ADINTMS - Adaptive Interface Machine Direction M_SKG57_C0400_1
ADINTWS - Adaptive Interface Workpiece Direction W_CYLH_G2000_1
CNSC - Coolant Entry Style Code 7
CXSC - Coolant Exit Style Code 1
CRKS - Connection Retention Knob Thread Size M16
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 15:06:00.000
STDLET - Standard Letter AD/B
STDNO - Standard Number MAS403-BT
DPC - Damping Property False
DCP - Data Chip Provision False
BBD - Balanced By Design True
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
