Sandvik Coromant A08H-SCLCL 06-R CoroTurn™ 107 boring bar for turning Previous Sandvik Coromant A08H-SCLCL 06-R CoroTurn™ 107 boring bar for turning

Sandvik Coromant A08H-STUCL 06-GR CoroTurn™ 107 boring bar for turning

R 2 167,75 inc. vat
In stock
SKU
5721880
CoroTurn® 107 boring bar for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 boring bar for turning
More Information
CP - Coolant Pressure 4000000Pa
DCON - Connection Diameter 8mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 100mm
BD - Body Diameter 8mm
TQ - Torque 0.6Nm
WT - Weight Of Item 0.047kg
OAL - Overall Length 100mm
OHX - Maximum Overhang 32mm
LSC - Clamping Length 88mm
KAPR - Tool Cutting Edge Angle 93deg
RMPX - Maximum Ramping Angle 0deg
DMIN - Minimum Bore Diameter 9mm
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
OHN - Minimum Overhang 12mm
WF - Functional Width 4.2mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 3.96875mm
RE - Corner Radius 0mm
Insert Thickness 1.98mm
ORDCODE A08H-STUCL 06-GR
ADINTMS - Adaptive Interface Machine Direction M_CYLR_F8000_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-06-13 14:42:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_TC06T1_2
Hand L

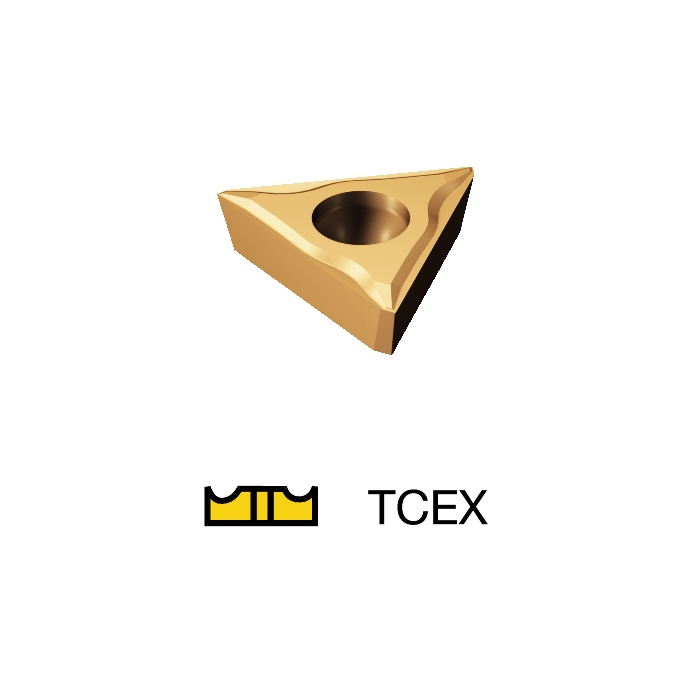

MIID - Master Insert Identification TCEX 06 T1 00R-F
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code T
SSC - Insert Seat Size Code 06
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
LOCAP - Location Aid Property True
