Sandvik Coromant A08H-STUCR 06-GR CoroTurn™ 107 boring bar for turning
R 2 167,75
inc. vat
In stock
SKU
5721881
CoroTurn® 107 boring bar for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 boring bar for turning
| CP - Coolant Pressure | 4000000Pa |
|---|---|
| DCON - Connection Diameter | 8mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 100mm |
| BD - Body Diameter | 8mm |
| TQ - Torque | 0.6Nm |
| WT - Weight Of Item | 43g |
| OAL - Overall Length | 100mm |
| OHX - Maximum Overhang | 32mm |
| LSC - Clamping Length | 88mm |
| KAPR - Tool Cutting Edge Angle | 93deg |
| RMPX - Maximum Ramping Angle | 0deg |
| DMIN - Minimum Bore Diameter | 9mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| OHN - Minimum Overhang | 12mm |
| WF - Functional Width | 4.2mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 3.96875mm |
| RE - Corner Radius | 0mm |
| Insert Thickness | 1.98mm |
| ORDCODE | A08H-STUCR 06-GR |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_F8000_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-13 14:42:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_TC06T1_1 |
| Hand | R |

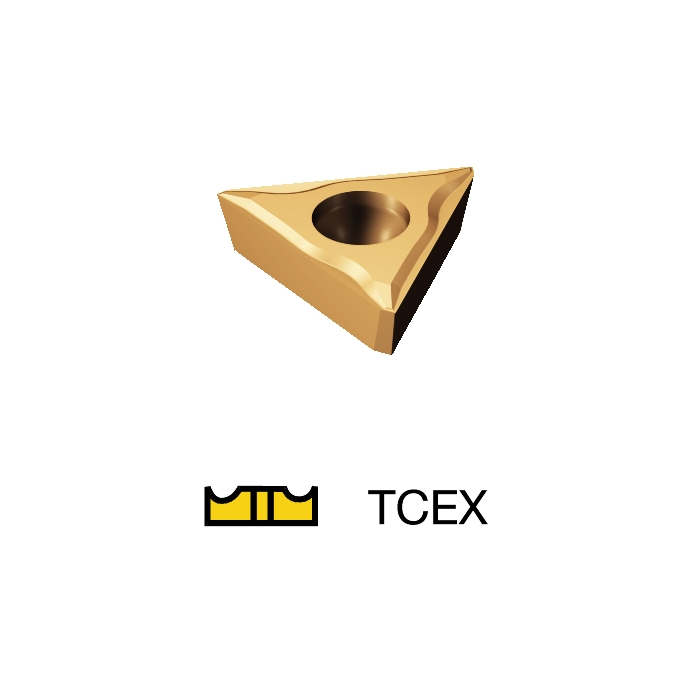

| MIID - Master Insert Identification | TCEX 06 T1 00L-F |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 06 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
| LOCAP - Location Aid Property | True |
