Sandvik Coromant A08H-SWLPR 02-R CoroTurn™ 111 boring bar for turning

R 2 190,75 inc. vat
In stock
SKU
5721885
CoroTurn® 111 boring bar for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 111 boring bar for turning
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 8mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 100mm
BD - Body Diameter 8mm
TQ - Torque 0.6Nm
WT - Weight Of Item 0.033kg
OAL - Overall Length 100mm
OHX - Maximum Overhang 32mm
LSC - Clamping Length 88mm
KAPR - Tool Cutting Edge Angle 95deg
RMPX - Maximum Ramping Angle 0deg
DMIN - Minimum Bore Diameter 10mm
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
OHN - Minimum Overhang 12mm
WF - Functional Width 5mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle 2deg
LAMS - Inclination Angle -10deg
AN - Clearance Angle Major 11deg
IC - Inscribed Circle Diameter 3.96875mm
RE - Corner Radius 0.1984375mm
Insert Thickness 1.5875mm
ORDCODE A08H-SWLPR 02-R
ADINTMS - Adaptive Interface Machine Direction M_CYLR_F8000_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 14:57:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_WP0201_1
Hand R

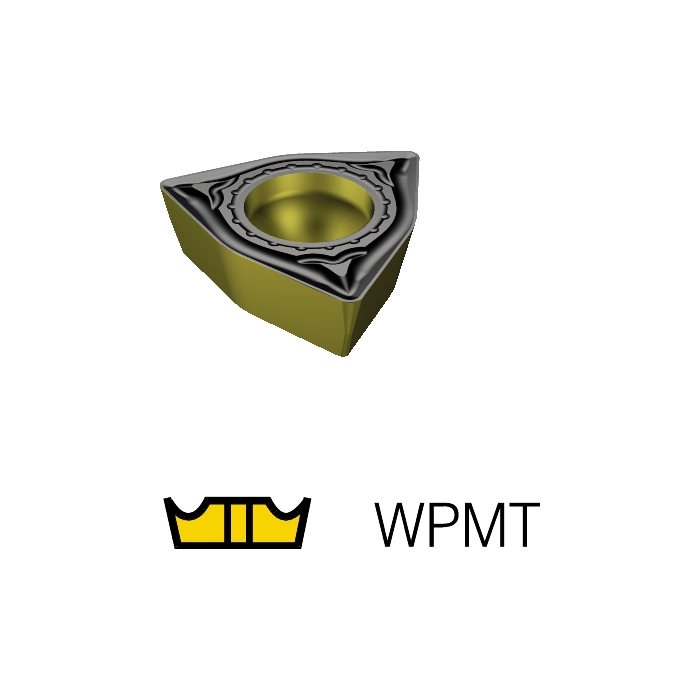

MIID - Master Insert Identification WPMT 02 01 02
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code W
SSC - Insert Seat Size Code 02
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
LOCAP - Location Aid Property True
