Sandvik Coromant A12S-SDUPR 3-R CoroTurn™ 111 boring bar for turning

Name: Sandvik Coromant A12S-SDUPR 3-R CoroTurn™ 111 boring bar for turning
SKU: 5721688
Price: 2723.20 ZAR
Availability: OutOfStock

R 2 723,20 inc. vat

Out of stock

SKU

5721688

CoroTurn® 111 boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 111 boring bar for turning

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	19.05mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	254mm
BD - Body Diameter	19.05mm
TQ - Torque	3Nm
WT - Weight Of Item	0.49kg
OAL - Overall Length	254mm
OHX - Maximum Overhang	76.2mm
LSC - Clamping Length	225.5mm
KAPR - Tool Cutting Edge Angle	93deg
RMPX - Maximum Ramping Angle	27deg
DMIN - Minimum Bore Diameter	23.6mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	28.575mm
WF - Functional Width	12.7mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	6deg
LAMS - Inclination Angle	-1deg
AN - Clearance Angle Major	11deg
IC - Inscribed Circle Diameter	9.525mm
RE - Corner Radius	0.79375mm
Insert Thickness	3.96875mm
ORDCODE	A12S-SDUPR 3-R
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R7500_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 14:56:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_DP11T3_1
Hand	R

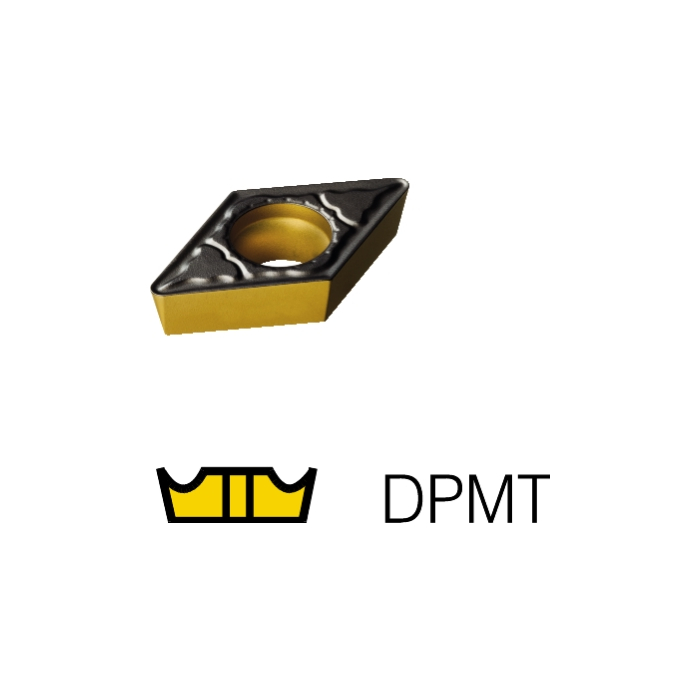

MIID - Master Insert Identification	DPMT 11 T3 08
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	D
SSC - Insert Seat Size Code	11
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
LOCAP - Location Aid Property	True
