Sandvik Coromant A12S-SDUPR 3 CoroTurn™ 111 boring bar for turning
R 2 723,20
inc. vat
Out of stock
SKU
5721687
CoroTurn® 111 boring bar for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 111 boring bar for turning
| CP - Coolant Pressure | 1000000Pa |
|---|---|
| DCON - Connection Diameter | 19.05mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 254mm |
| BD - Body Diameter | 19.05mm |
| TQ - Torque | 3Nm |
| WT - Weight Of Item | 0.477kg |
| OAL - Overall Length | 254mm |
| OHX - Maximum Overhang | 76.2mm |
| LSC - Clamping Length | 225.5mm |
| KAPR - Tool Cutting Edge Angle | 93deg |
| RMPX - Maximum Ramping Angle | 27deg |
| DMIN - Minimum Bore Diameter | 23.6mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| OHN - Minimum Overhang | 28.575mm |
| WF - Functional Width | 12.7mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 6deg |
| LAMS - Inclination Angle | -1deg |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 0.79375mm |
| Insert Thickness | 3.96875mm |
| H - Shank Height | 18.0086mm |
| ORDCODE | A12S-SDUPR 3 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLF3_R7500_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-18 14:56:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_DP11T3_1 |
| Hand | R |

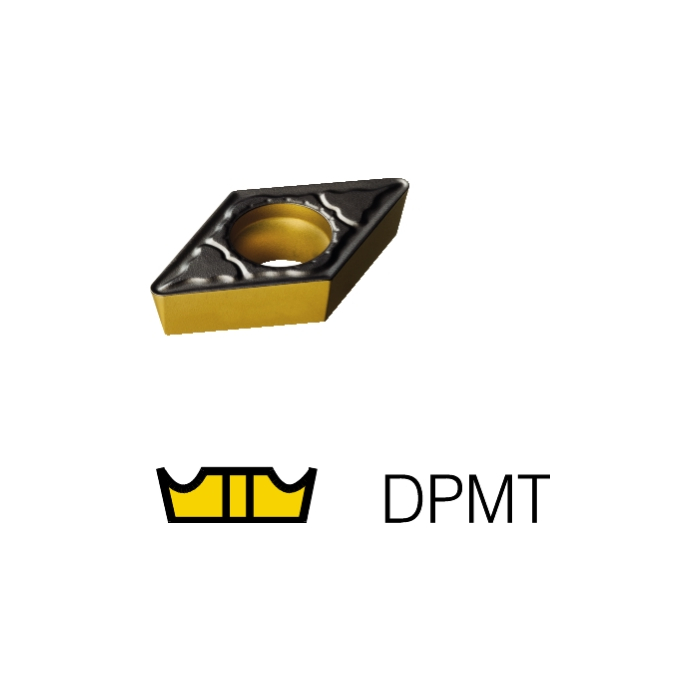

| MIID - Master Insert Identification | DPMT 11 T3 08 |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | D |
| SSC - Insert Seat Size Code | 11 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
