Sandvik Coromant A16R-SVUCL 11-ER CoroTurn™ 107 boring bar for turning

Name: Sandvik Coromant A16R-SVUCL 11-ER CoroTurn™ 107 boring bar for turning
SKU: 5721975
Price: 2190.75 ZAR
Availability: InStock

R 2 190,75 inc. vat

In stock

SKU

5721975

CoroTurn® 107 boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 107 boring bar for turning

More Information
CP - Coolant Pressure	4000000Pa
DCON - Connection Diameter	16mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	200mm
BD - Body Diameter	16mm
TQ - Torque	0.9Nm
WT - Weight Of Item	0.262kg
OAL - Overall Length	200mm
OHX - Maximum Overhang	64mm
LSC - Clamping Length	176mm
KAPR - Tool Cutting Edge Angle	93deg
RMPX - Maximum Ramping Angle	50deg
DMIN - Minimum Bore Diameter	22mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	24mm
WF - Functional Width	13mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	-3.808deg
AN - Clearance Angle Major	7deg
IC - Inscribed Circle Diameter	6.35mm
RE - Corner Radius	0.396875mm
Insert Thickness	3.175mm
ORDCODE	A16R-SVUCL 11-ER
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_G1600_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 14:59:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_VC1103_1
Hand	L

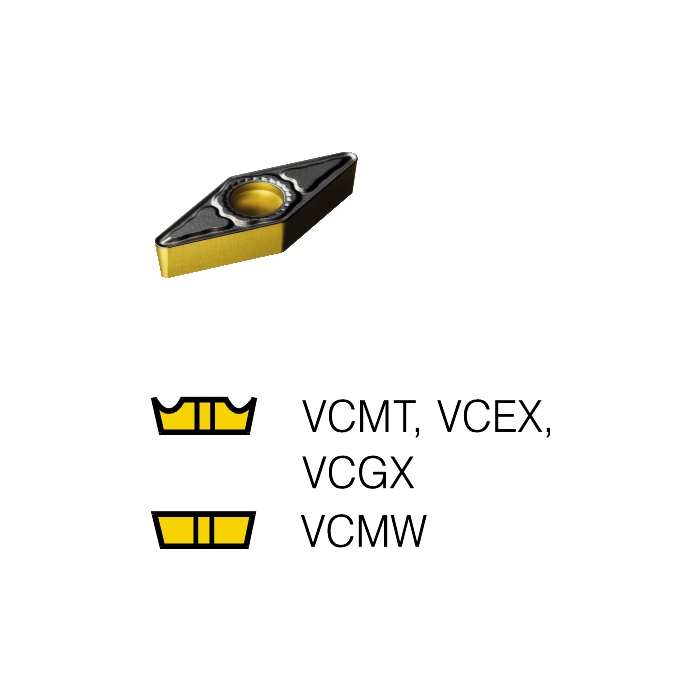

MIID - Master Insert Identification	VCMT 11 03 04
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	V
SSC - Insert Seat Size Code	11
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
LOCAP - Location Aid Property	True
