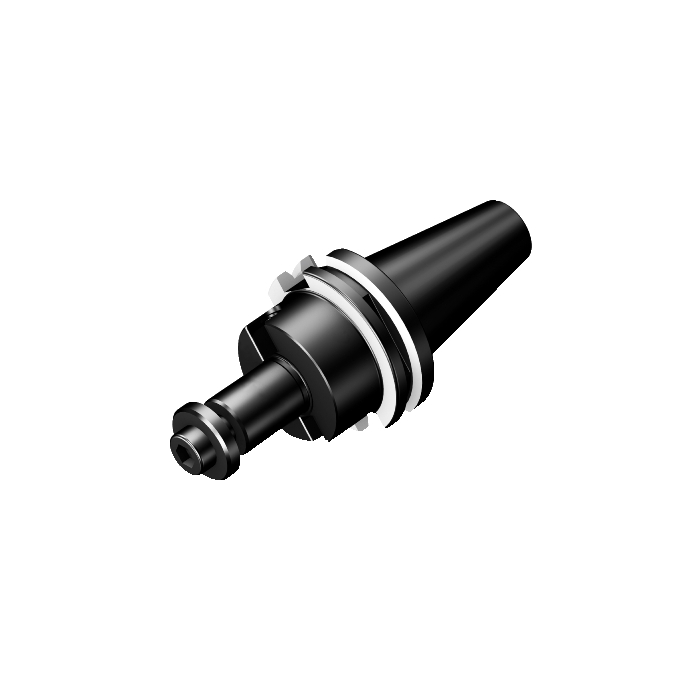

Sandvik Coromant A1B08-40 22 055 ISO 7388-1 to side & face mill arbor adaptor

R 1 807,80 inc. vat
Out of stock
SKU
6073964
ISO 7388-1 to side and face mill arbor adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
ISO 7388-1 to side and face mill arbor adaptor
More Information
CP - Coolant Pressure 8000000Pa
DFC - Functional Diameter 44.45mm
DCON - Connection Diameter 22mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 43mm
BD - Body Diameter 63.5mm
LB - Body Length 43mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 45Nm
RPMX - Rotational Speed Maximum 180001/min
WT - Weight Of Item 1.255kg
OAL - Overall Length 111.4mm
OHX - Maximum Overhang 43mm
LSC - Clamping Length 31mm
ORDCODE A1B08-40 22 055
ADINTMS - Adaptive Interface Machine Direction M_SKG17_C0400_1
ADINTWS - Adaptive Interface Workpiece Direction W_FDA1AB1_G2200_1
CNSC - Coolant Entry Style Code 7
CXSC - Coolant Exit Style Code 1
CRKS - Connection Retention Knob Thread Size M16
BMC - Body Material Code 1
CHANGEDATE 2022-08-23 09:10:00.000
STDLET - Standard Letter AD/B
STDNO - Standard Number DIN69871
DPC - Damping Property False
BBD - Balanced By Design True
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
