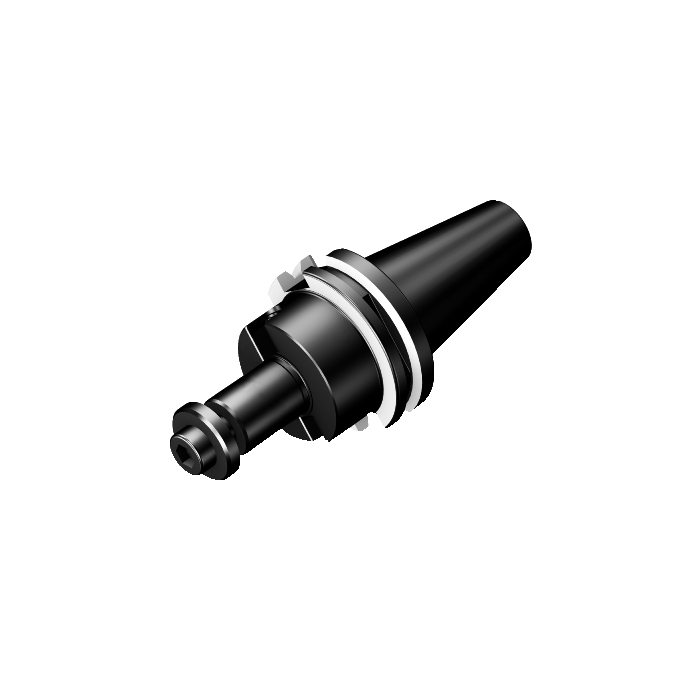

Sandvik Coromant A208-30 27 050 MAS-BT 403 to side & face mill arbor adaptor

R 1 807,80 inc. vat
Out of stock
SKU
6073974
MAS-BT 403 to side and face mill arbor adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
MAS-BT 403 to side and face mill arbor adaptor
More Information
CP - Coolant Pressure 8000000Pa
DFC - Functional Diameter 31.75mm
DCON - Connection Diameter 27mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 38mm
BD - Body Diameter 48mm
LB - Body Length 38mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 80Nm
RPMX - Rotational Speed Maximum 250001/min
WT - Weight Of Item 866.4g
OAL - Overall Length 86.4mm
OHX - Maximum Overhang 38mm
LSC - Clamping Length 33mm
ORDCODE A208-30 27 050
ADINTMS - Adaptive Interface Machine Direction M_SKG51_C0300_1
ADINTWS - Adaptive Interface Workpiece Direction W_FDA1AB1_G2700_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 1
DCPS - Data Chip Provision Size 2
CRKS - Connection Retention Knob Thread Size M12
BMC - Body Material Code 1
CHANGEDATE 2021-12-20 22:58:00.000
STDLET - Standard Letter AD
STDNO - Standard Number MAS403-BT
DPC - Damping Property False
DCP - Data Chip Provision True
BBD - Balanced By Design True
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
